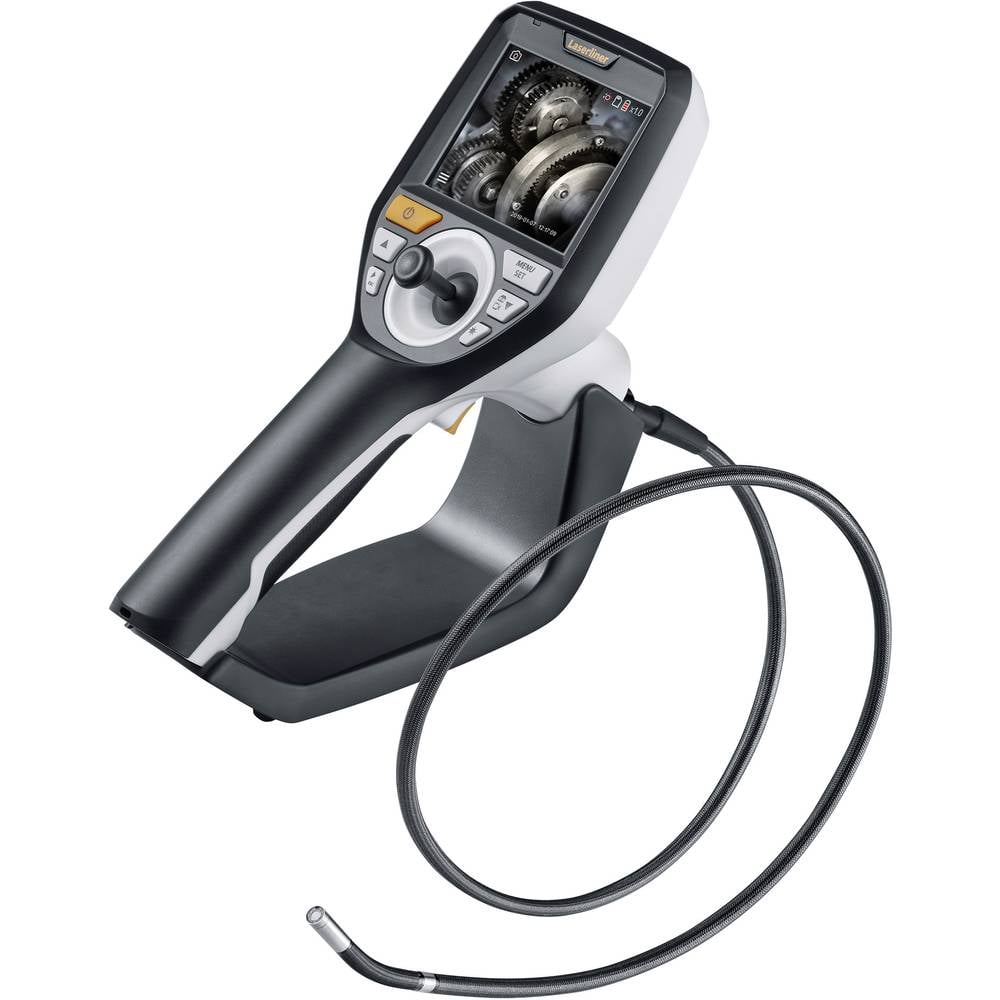

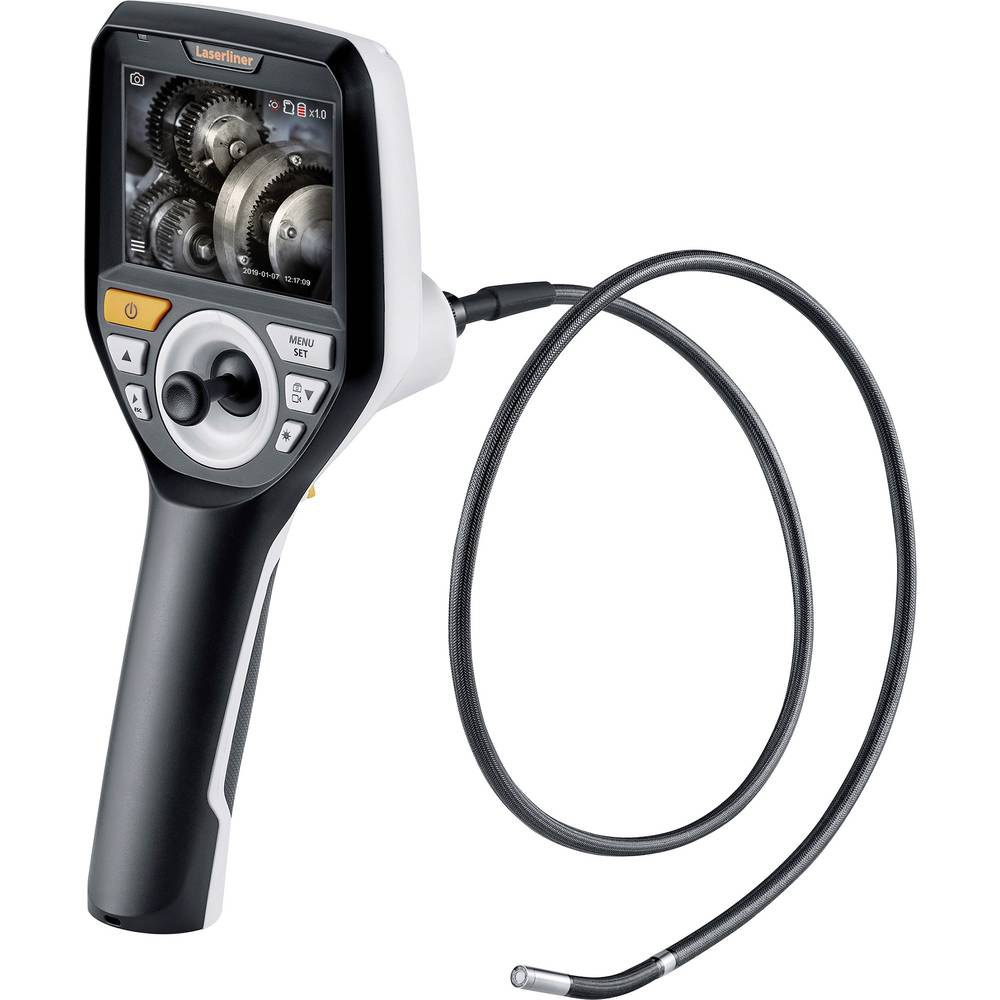

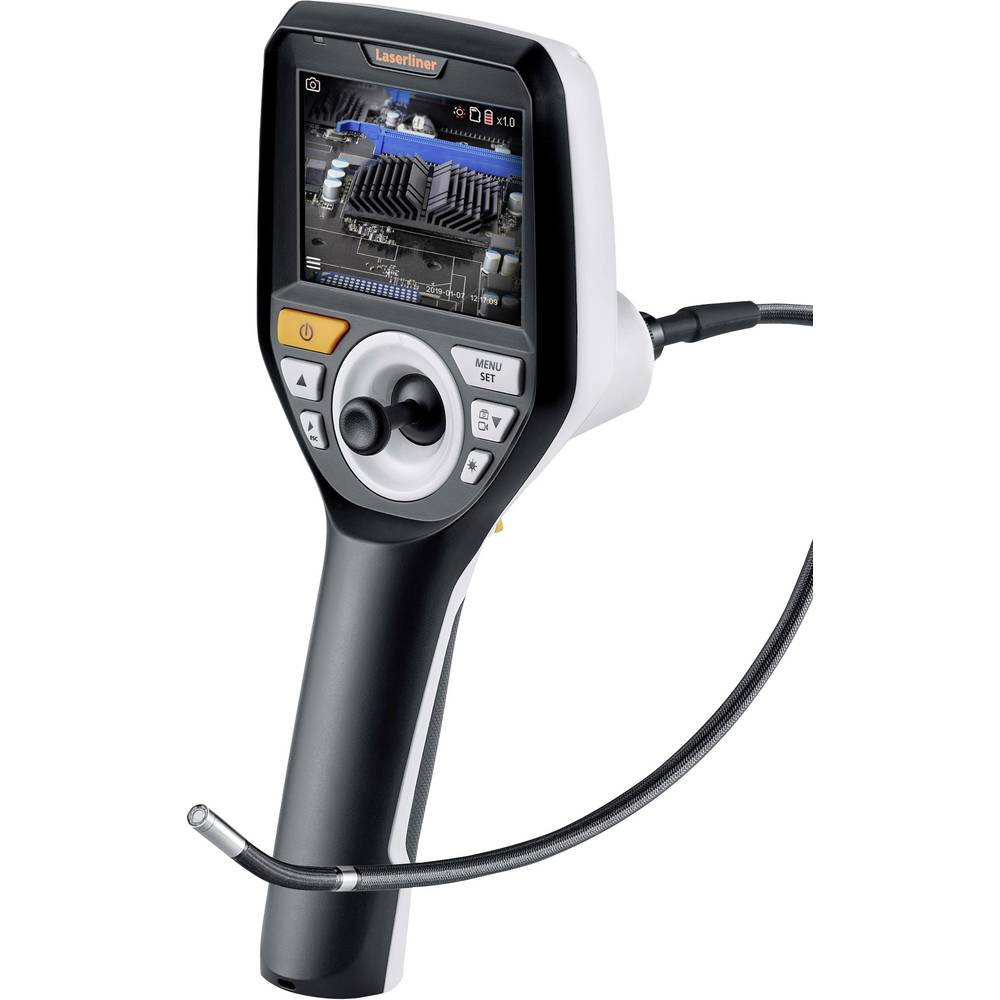

B-stock Laserliner 082.270A inspection camera probe length endoscope camera DEFECTIVE GOODS

Scope of delivery

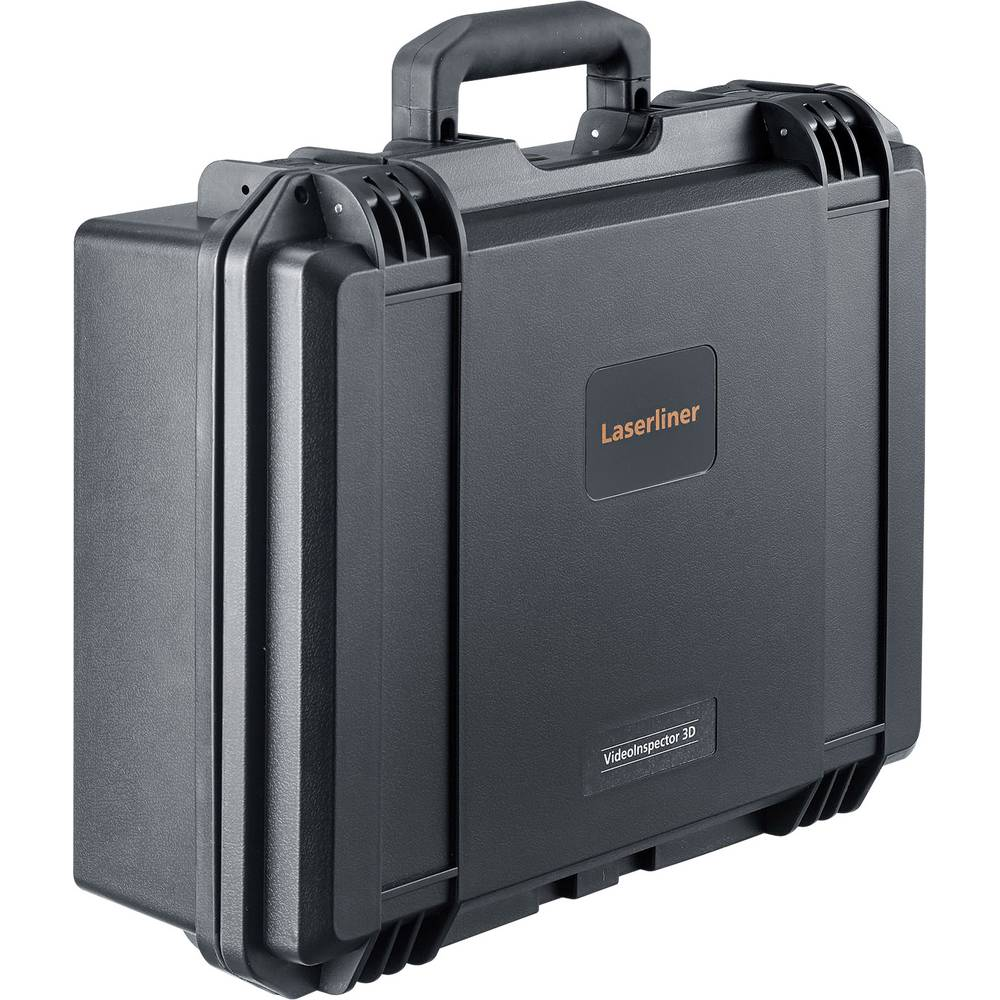

• Transport case
• Li-ion battery pack
• USB charging cable
• HDMI cable
• 8 GB Micro-SD card
• Card Reader

Highlights & Details

• Manual 3D control of the small titanium camera head (ø 6 mm) with a large 210° adjustment range; Problem localization: The camera shows what is behind or inside objects, walls, pipes, cables, etc., even under the worst lighting conditions, thanks to the LED lighting.
• Ideal for inaccessible areas thanks to the small camera head (ø 6 mm)
• High-intensity object illumination at the camera using 6 high-performance ceramic LEDs.
• Ambient light reduction: High-contrast TFT display that offers optimal image quality even in strong sunlight.
• Image rotation in 90° increments

Technical data

12-language menu

Probe diameter

6mm

Probe length

1m

Endoscope features

Swivel function

HDMI

Image function

Image rotation

LED lighting

SD card slot

Video function

Display resolution

640 x 480 pixels

Camera resolution

960 x 720 pixels

Focus

Fixed focus 2.5-10cm

Digital zoom

10x

Protection class

IP68 (probe)

field of vision

85°

light source

LED (20,000 lux)

Maximum bending radius

80mm

Weight

485g

Dimensions

(L x W x H) 115 x 115 x 190 mm

length

115mm

Width

115mm

Height

190mm

type

VideoInspector 3D

Ambient temperature

-10°C to 50°C

Product type

Inspection camera
