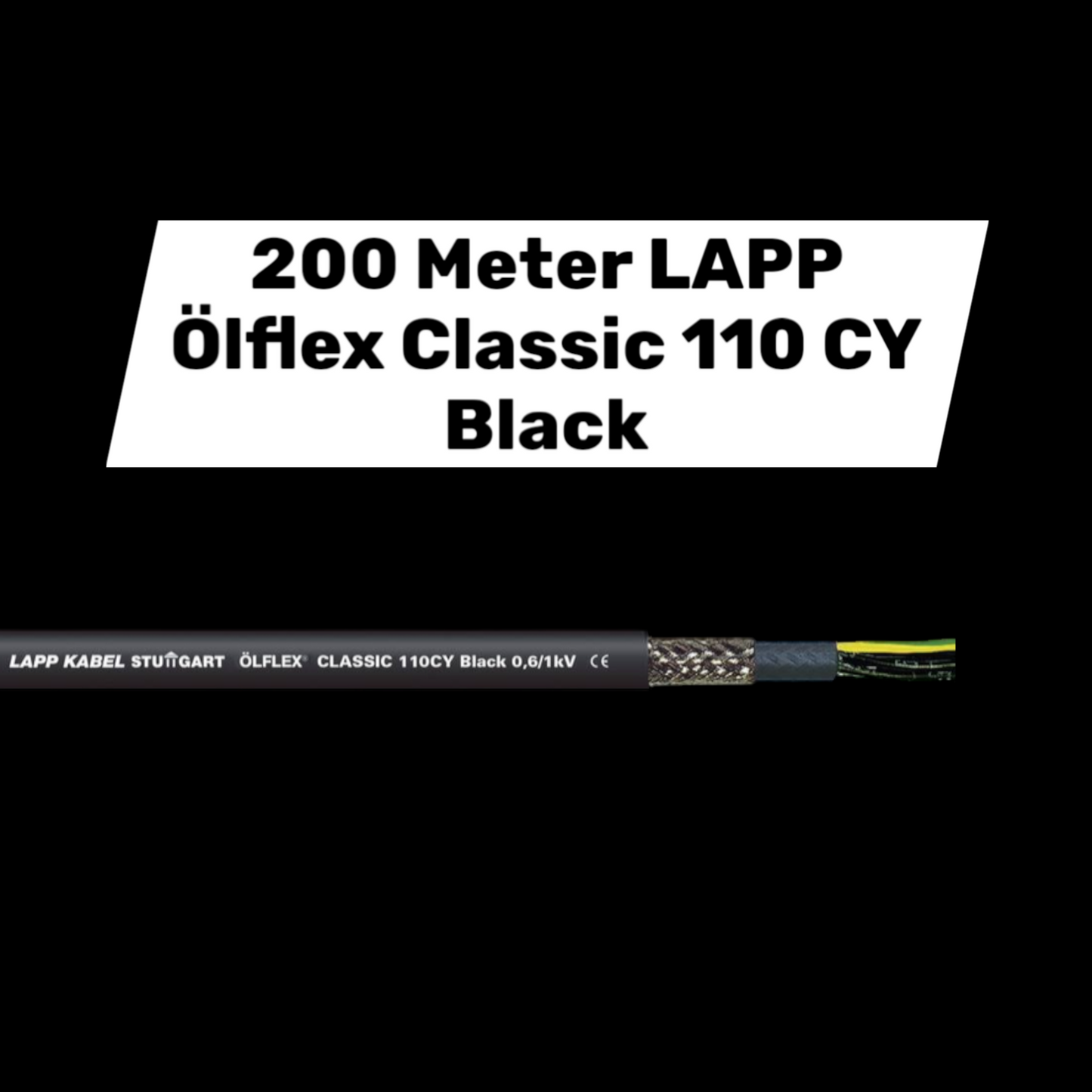

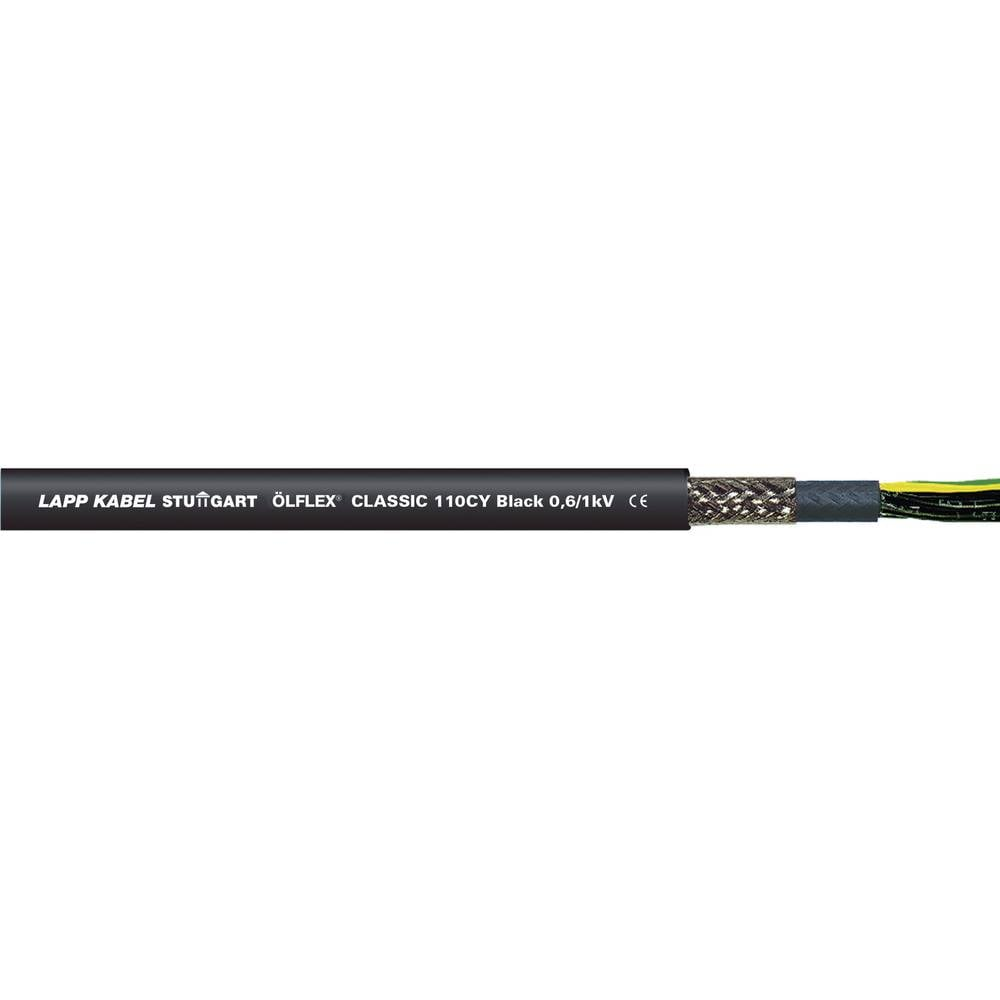

B-grade Lapp Ölflex Classic 110 Cy Black control cable, 200 meters

Bending radius (number of outer diameters for flexible use)

20

Bending radius (number of outer diameters for fixed installation)

6

Cable type

ÖLFLEX CLASSIC 110 CY BLACK

Contents

fabric by the meter

cross-section

2 x 1 mm²

Color

Black

Cross-section (per conductor)

1 mm²

Halogen-free

No

insulation

PVC

Insulation material

PVC

Special features

Shielded

UV-resistant

type

ÖLFLEX CLASSIC 110 CY

Material (details)

PVC

Nominal voltage

1000 V

Outer diameter

10.80 mm

Maximum delivery quantity in one piece

500 m

Nominal voltage U0

600 V

Temperature range, permanently installed (max.)

+80 °C

Temperature range, permanently installed (min.)

-40 °C

Temperature range, moving (max.)

+70 °C

Temperature range, moving (min.)

-5 °C

Number of wires

2 x

Packaged

No

Ladder assembly

Fine-wire according to VDE 0295, Class 5 / IEC 60228 Cl.5

test voltage

4000 V

Test mark

Based on: VDE 0250-1 and HD 627 S1

fabric by the meter

Yes

Product type

Control line
