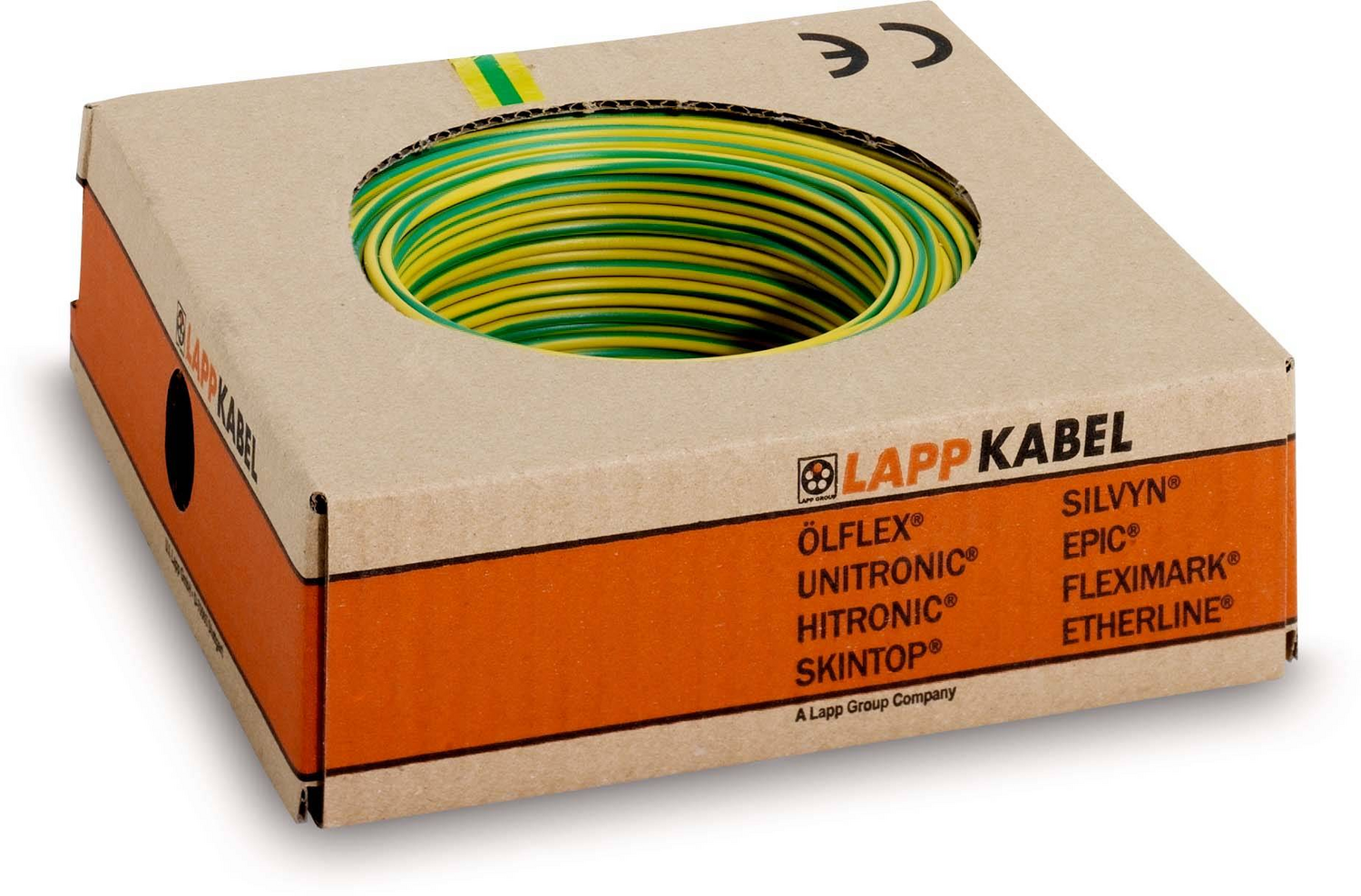

B-grade Lapp 4150500 stranded wire Multi Standard Sc 2.2 1 x 2.50 mm² Green Yellow 100 m single wires

Technical data

Nominal conductor cross-section: 2.5 mm²

• Conductor class: Class 5 = finely stranded
• Number of conductors: 1

Nominal voltage

750V

Cable type

Multi-Standard SC 2.2

Contents

100m

cross-section

1 x 2.50 mm²

Manufacturer's color

Green

Yellow

Cross-section (per conductor)

2.50mm²

Halogen-free

No

insulation

PVC

Special features

Flame retardant

Oil resistant

Flexible

type

SC 2.2 1X2.5 GNYE

Outer diameter

4mm

Nominal voltage U0

450V

Temperature range, permanently installed (max.)

+105°C

Temperature range, permanently installed (min.)

-40°C

Temperature range, moving (max.)

+105°C

Temperature range, moving (min.)

-40°C

Number of wires

1x

Packaged

Yes

Ladder assembly

Fine-wire

test voltage

IEC: 2500V/AC · UL: 4000V/AC

fabric by the meter

No

Product type

wire
