B-grade Lapp 2170272/100 bus cable, 1 x 2 x 0.25 mm², violet, 100 m.

Technical data

Cable type

Number of wires

2x

Cross-section (per conductor)

0.25mm²

cross-section

1 x 2 x 0.25 mm²

Special features

Halogen-free

Shielded

Flame retardant

Suitable for drag chains

PUR coat

Outer diameter

6.40mm

Manufacturer's color

Violet

Contents

100m

Nominal voltage

250V

test voltage

Wire/wire: 1500 V rms

Bending radius (number of outer diameters for flexible use)

15

Packaged

Yes

fabric by the meter

No

Halogen-free

Yes

Shielded

Yes

Insulation material

Polyurethan

Temperature range, permanently installed (min.)

-40°C

Temperature range, permanently installed (max.)

+80°C

Temperature range, moving (min.)

-30°C

Temperature range, moving (max.)

+70°C

conductor resistance

(Loop): max. 159.8Ω/km

Operating capacity

(800 Hz): max. 60 nF/km

Wave resistance

120Ω

type

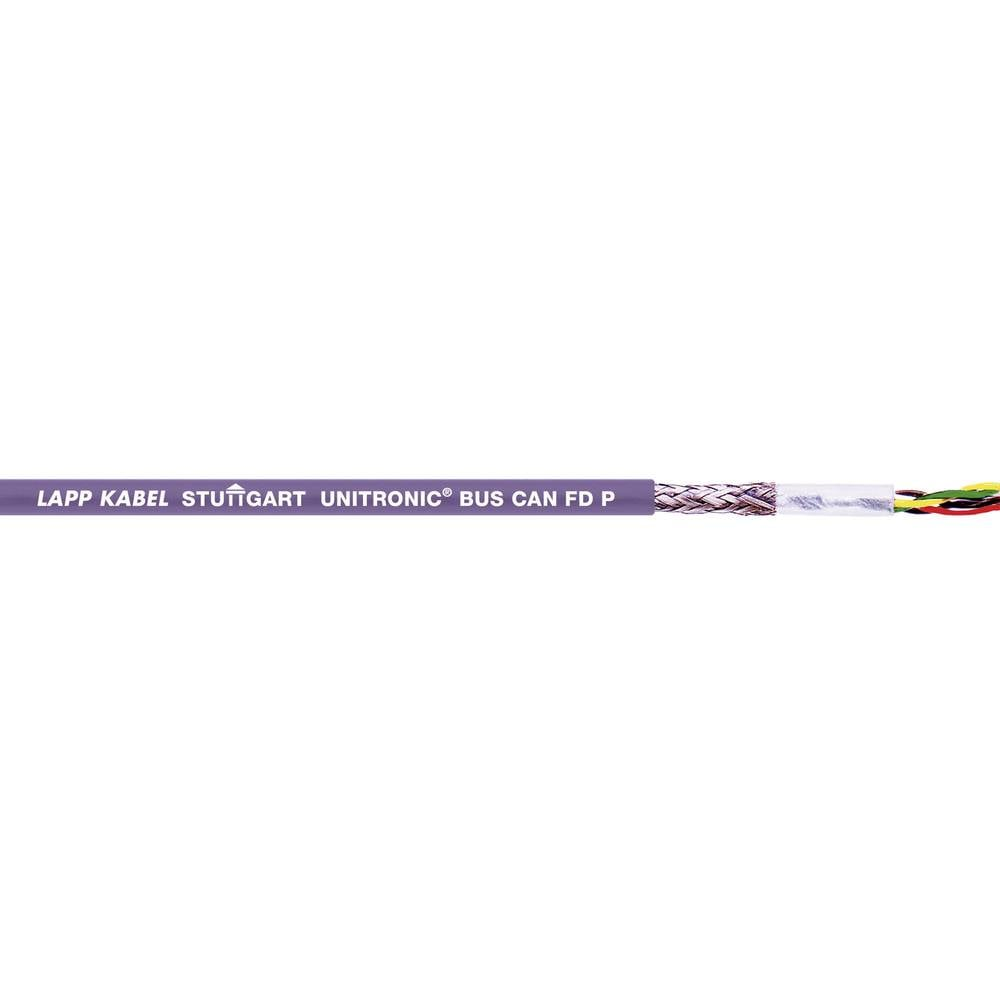

UNITRONIC BUS CAN FD P 1X2X0.25

Paired rope (Part 1)

Yes

Product type

Bus line
