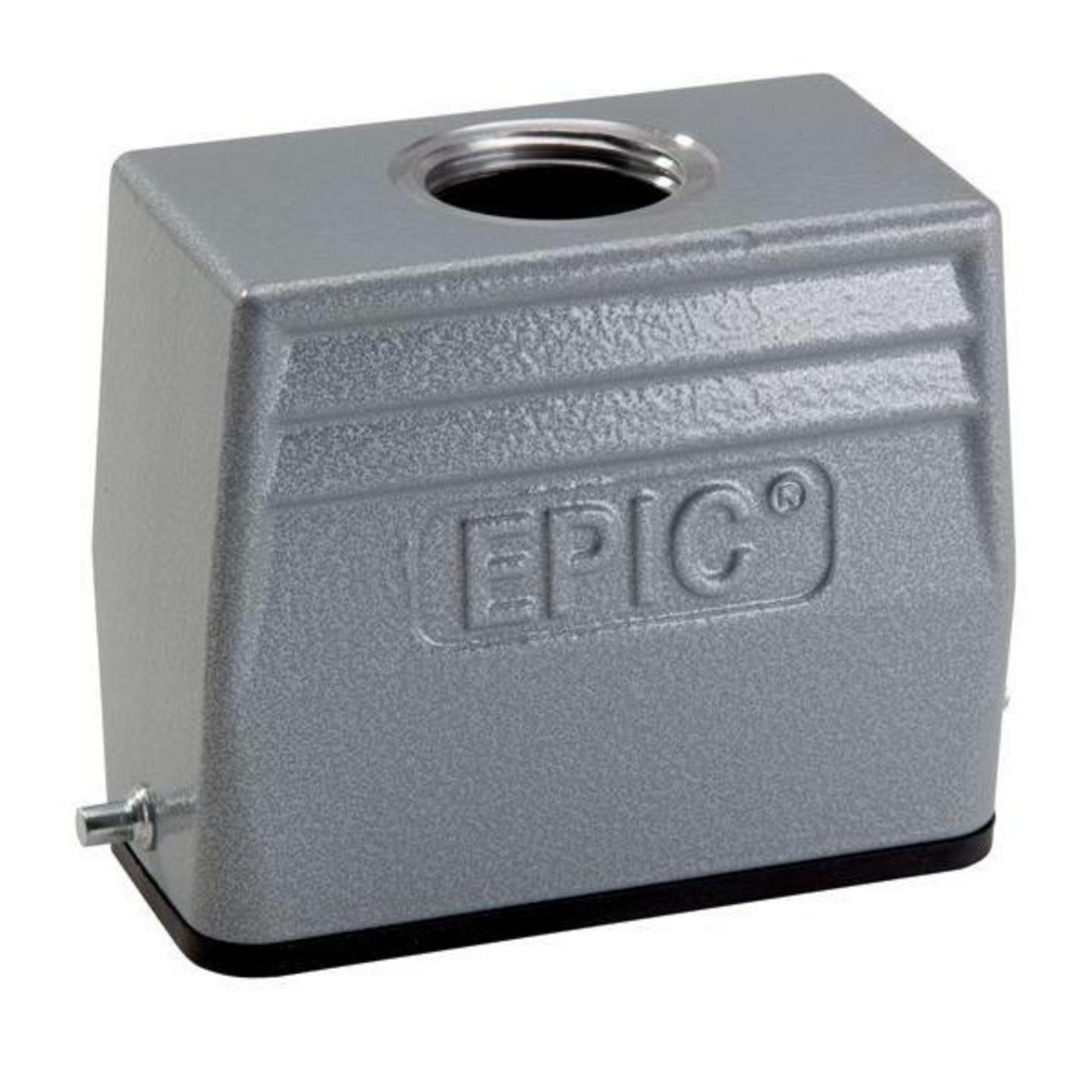

B-grade Lapp 19446100 grommet housing M25 Epic HA 10 connector plug housing 5 pcs.

Image similar.

Manufacturer: Lapp Accessories
Designation: EPIC HA 10 TG M25
Type: 19446100
Width: 29.5 mm
Height: 53.5 mm
Depth: 63 mm
Housing design: Connector housing
Housing material: Aluminum
Housing coating: powder-coated
Case color: grey
Cable entry arrangement: top
Ironing position: Lower part
With cable gland: no
Cable gland mounting type: metric
With hinged lid: no
With stockings: no
With seal: yes
Number of cable entries: 1
Locking mechanism type: longitudinal bar
Flammability class of the insulating material according to UL 94: HB
Operating temperature: -40 to 125 °C
EMC version: no
Corrosion resistant: yes
UV-resistant: yes
Protection rating (IP), mounted: IP65
