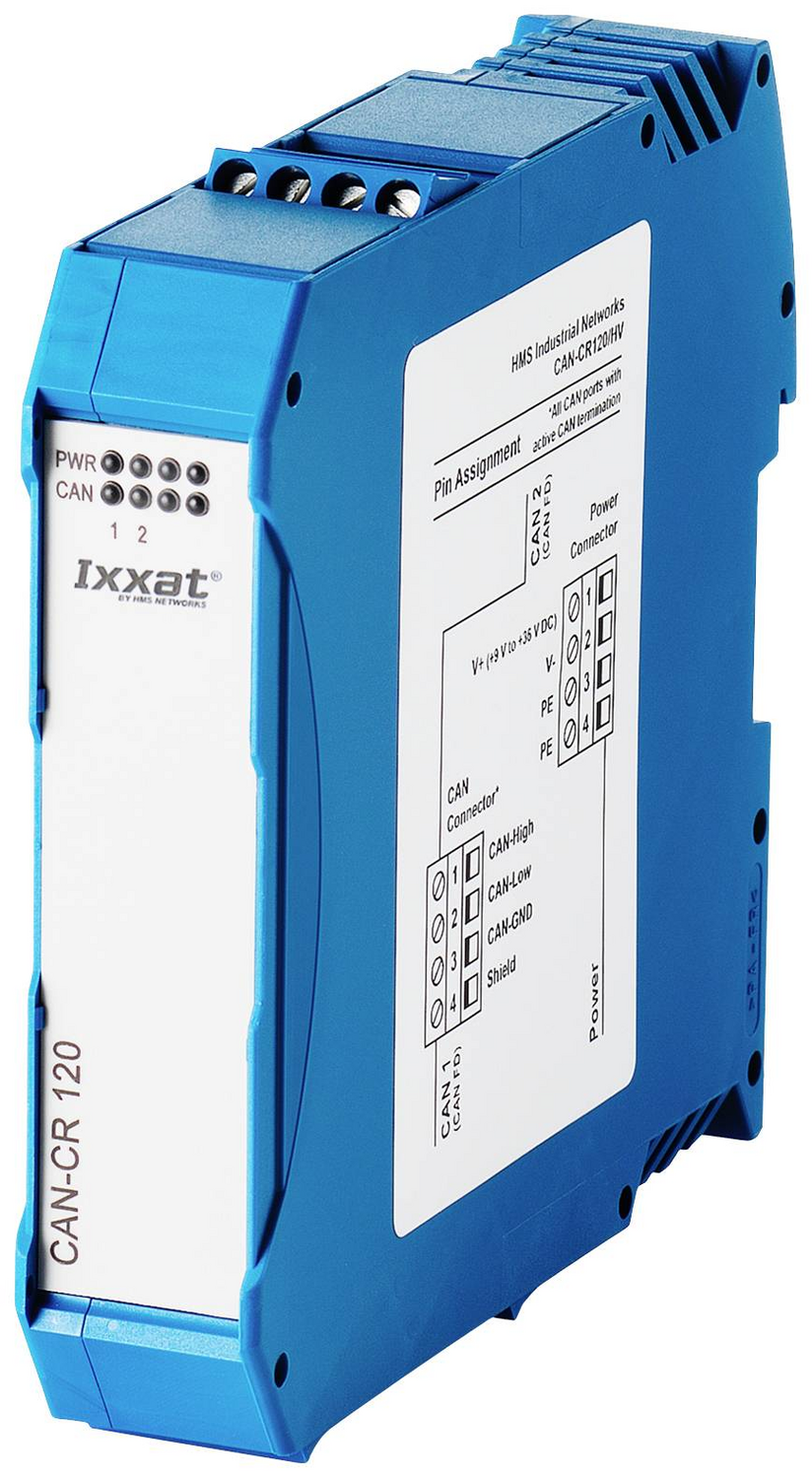

B-stock Ixxat 1.01.0210.20210 Can Cr120/Hv Can/Can Fd Repeater 24 V/Dc Can Fd Repeater

• Interfaces: CAN, CAN FD, screw connectors
• CAN bus interface: ISO 11898-2 with CAN choke. Two screw terminals.
• CAN bit rates: Up to 1 Mbit/s
• CAN FD bus interface: ISO CAN FD and nonISO CAN FD
• CAN FD bit rates: Arbitration rate up to 1000 kbit/s, data rate up to 8000 kbit/s. The data rates have been verified through testing. User-defined bit rates are possible.
• Transmission delay: Typ. 175 ns (corresponds to approx. 35 m cable length)
• Galvanic isolation: 3 kV DC / 1 sec, 1500 V AC / 1 min; CAN 1, CAN 2 and power supply are galvanically isolated from each other.
• Housing: Plastic DIN rail housing

type

CAN-CR120/HV

Operating voltage

24V/DC

Maximum operating temperature

70°C

Minimum operating temperature

-20°C

Operating voltage (details)

9 - 36V/DC

Operating temperature

-20 to 70 °C

Dimensions

(W x H) 22.5 mm x 99 mm

Height

99mm

Width

22.5mm

Product type

CAN/CAN-FD Repeater
