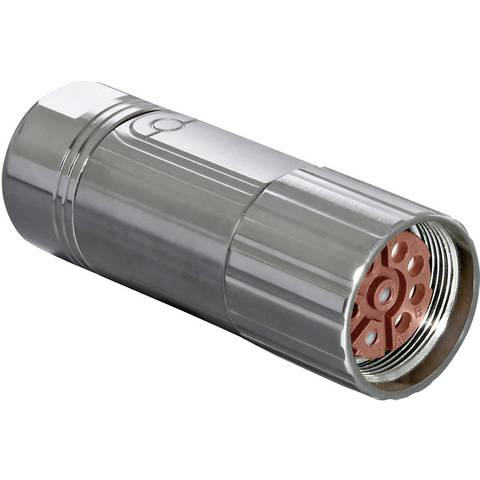

B-stock Intercontec industrial connectors, power connectors, signal connectors M23

Technical data

• Number of mating cycles: Min. 500

Contents

1 pc.

Protection class

IP67

Manufacturer part number

BSTA078FR35420235000

type

BSTA078FR35420235000

execution

Power connector

Design

Plugs, straight

Rated current

24/7 A

Rated voltage

630 / 250 V

Connection cross-section

Contact connection: 4 x 0.50 - 4.0 mm² · 4 x 0.14 - 1.0 mm²

Conductor diameter

9.0 - 14.5 mm

Pole

(3 + PE) + 4

Connection

Crimpable or solderable

Contact material

Gilded

Temperature range

-20 to +130 °C

Closure

screw cap

Housing material

metal

RoHS compliant

Yes
