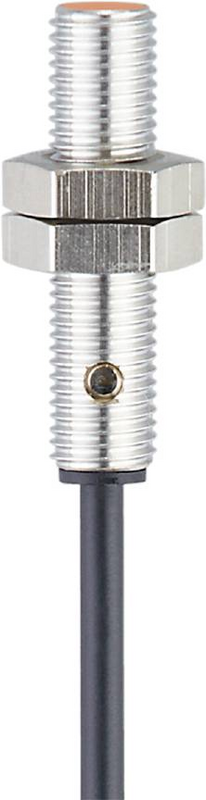

B-stock Ifm Electronic Npn Ie5082 inductive sensor proximity sensor

• Dimensions [mm]: M8 x 1 / L = 35
• Indicator: Switching status: 1 x LED, yellow
• Working distance [mm]: 0...0.8
• Ambient temperature-1 [°C]: -25...80
• Tightening torque [Nm]: A = 5 mm: 1 ; B: 2
• Output function: Normally closed contact
• Operating voltage [V]: 10...36 DC
• Continuous current rating of the switching output DC [mA]: 200
• Installation type: flush mountable
• Electrical design: NPN
• Housing: Threaded design
• Weight [g]: 50,900
• Thread designation: M8 x 1
• Hysteresis: 1...15
• Cable: Cable: 2 m, PVC; 3 x 0.14mm²
• Correction factor (Al): 0.3
• Correction factor (Cu): 0.2
• Correction factor (Ms): 0.4
• Correction factor (V2A): 0.7
• Correction factor for steel (St37): 1
• Short-circuit protection: yes
• Max. voltage drop switching output DC [V]: 2.5
• MTTF: 2673
• Certification mark (special cases): CCC
• Actual switching distance Sr [mm]: 1 ± 10 %
• Switching distance [mm]: 1
• Switching frequency DC [Hz]: 750
• Shift point drift: -10...10
• Protection class: IP 67
• Protection class: III
• Current consumption [mA]: 15; (24 V)
• Overload resistant: yes
• Reverse polarity protection: yes

type

IE5082

Minimum operating voltage

10V/DC

Maximum operating voltage.

36V/DC

Operating voltage range

10 - 36 V/DC

Exits

NPN

Cable length

2m

Connection

Cable, open end

Contact type

1 closer

Minimum temperature

-25°C

Max. temperature

80°C

RoHS compliant

Yes

Contents

1 pc.

Product type

Inductive sensor
