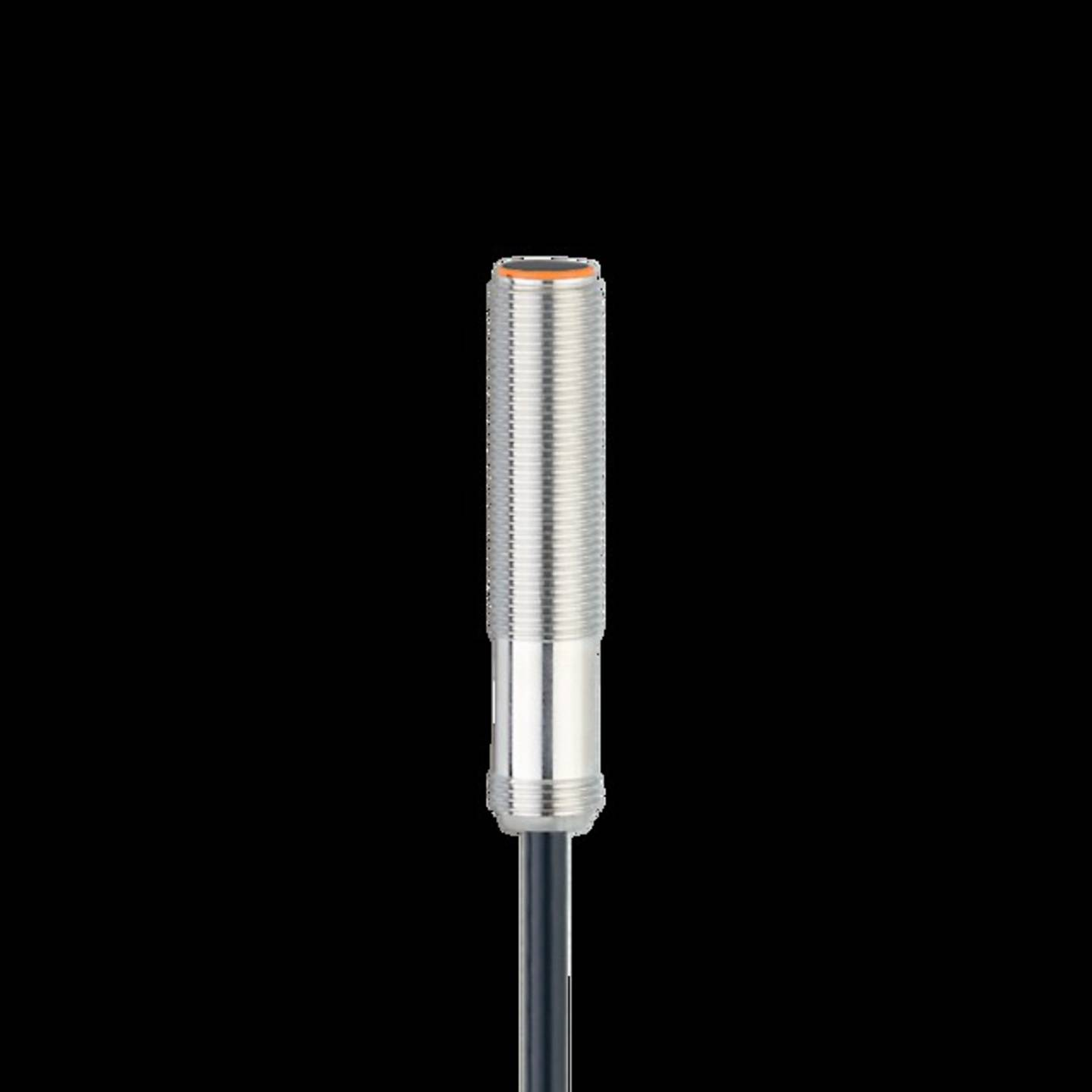

B-stock Ifm Electronic inductive sensor NPN IF7106 proximity sensor proximity switch

Technical data

Dimensions and design

• Dimensions [mm]: M12 x 1 / L = 60
• Thread designation: M12 x 1
• Housing: Threaded design
• Weight [g]: 95,000

Electrical properties

• Operating voltage [V]: 10...30 DC
• Operating voltage range: 10 - 30 V/DC
• Output function: Normally closed contact
• Electrical design: NPN
• Continuous current rating of the switching output DC [mA]: 100
• Current consumption [mA]: < 10
• Short-circuit protection: Yes
• Overload resistant: Yes
• Reverse polarity protection: Yes
• Max. voltage drop switching output DC [V]: 2.5

Switching behavior

• Switching distance [mm]: 2
• Working distance [mm]: 0...1.62
• Actual switching distance Sr [mm]: 2 ± 10 %
• Hysteresis [%]: 3...15
• Shift point drift [%]: -10...10
• Switching frequency DC [Hz]: 800

Mechanical and environmental conditions

• Tightening torque [Nm]: 12
• Installation type: flush mountable
• Cable length: 2 m (PUR, Ø 4.0 mm; 3 x 0.34 mm²)
• Protection class: IP 67
• Protection class: III
• Ambient temperature-1 [°C]: -25...75
• Minimum temperature [°C]: -25
• Max. temperature [°C]: 75

Display and software

• Indicator: Switching status: 1 x LED, yellow
• Embedded software included: Yes

Correction factors

• Al: 0.4
• Cu: 0.3
• Ms: 0.5
• V2A: 0.7
• Steel (St37): 1

reliability

• MTTF: 1627

Type and standards

• Type: IF7106
• RoHS compliant: Yes

Connection

• Connection: Cable, open end

Contents

• Contents: 1 pc.

Product type

• Product type: Inductive sensor
