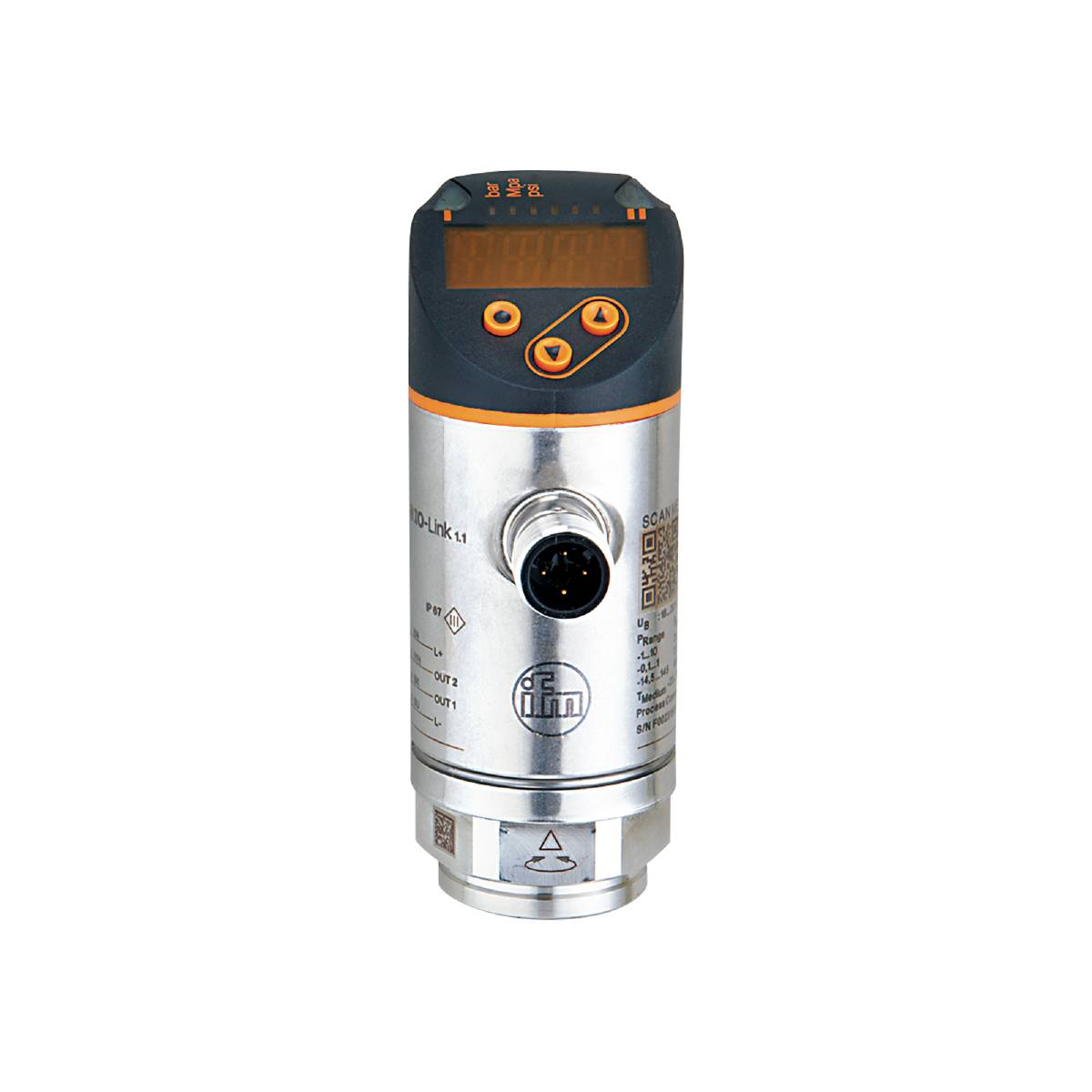

B-stock ifm Electronic pressure sensor PN2092 0 MPa to 10 MPa M12 sensor industrial sensor

Technical data

• Analog output voltage [V]: 0...10; (scalable 1:5)
• Analog output current [mA]: 4...20; (scalable 1:5)
• Analog endpoint [bar]: 20...100
• Analog endpoint [MPa]: 2...10
• Analog endpoint [psi]: 290...1450
• Analogue starting point [bar]: 0...80
• Analog start point [MPa]: 0...8
• Analogue starting point [psi]: 0...1160
• Response time [ms]: < 1.5
• Number of analog outputs: 1
• Number of digital outputs: 2
• Number of inputs and outputs: Number of digital outputs: 2; Number of analog outputs: 1
• Display: Display unit: 3 x LEDs, green (bar, psi, MPa); Switching status: 2 x LEDs, yellow; Measured values: alphanumeric display, red / green, 4 digits
• Compressive strength [MPa]: 30
• Compressive strength [psi]: 4350
• In steps of - Factory setting / CMPT = 2 [MPa]: 0.02
• In steps of - Status_B High Resolution / CMPT = 3 [MPa]: 0.01
• IO-Link Revision: 1.1
• Characteristic curve deviation: < ± 0.25 (BFSL) / < ± 0.5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line (smallest value setting); LS = limit point setting)
• Measuring range [MPa]: 0...10
• Measuring element: ceramic-capacitive pressure measuring cell
• Minimum distance between SP and rP - Factory setting / CMPT = 2 [MPa]: 0.06
• Minimum distance between SP and rP - Status_B High Resolution / CMPT = 3 [MPa]: 0.05
• Minimum burst pressure [MPa]: 65
• Reset point rP - Factory setting / CMPT = 2 [MPa]: 0.02...9.96
• Switch-back point rP - Status_B High Resolution / CMPT = 3 [MPa]: 0.02...9.96
• Switching point SP - Factory setting / CMPT = 2 [MPa]: 0.06...10
• Switching point SP - Status_B High Resolution / CMPT = 3 [MPa]: 0.06...10
• Switching point accuracy range: < ± 0.4; (Turn down 1:1)
• SDCI standard: IEC 61131-9
• Transmission type IO-Link: COM2 (38.4 kBaud)
• Ambient temperature-1 [°C]: -25...80
• Repeatability percentage range: < ± 0.1; (for temperature fluctuations < 10 K; turndown 1:1)
• Tightening torque [Nm]: 25...35; (recommended torque; depending on lubrication, seal and pressure load)
• Application: for industrial use
• Short-circuit protection design: pulsed
• Output function: Normally closed / Normally open; (configurable)
• Output signal: Switching signal; Analog signal; IO-Link; (configurable)
• Conditionally suitable for use in gaseous media at pressures > 25 bar only on request.
• Required master port class: A; (if PIN 2 is not connected: B)
• Ready delay time [s]: 0.3
• Special feature: Gold-plated contacts
• Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
• Analog output attenuation dAA [s]: 0...4
• Damping process value dAP [s]: 0...4
• Continuous current rating of the switching output DC [mA]: 250
• Throttle element present: no (can be retrofitted)
• Type of pressure: Relative pressure
• Compressive strength [bar]: 300
• Pressure Equipment Directive: Good Engineering Practice; suitable for fluids of fluid group 2; fluids of fluid group 1 on request
• Adjustable delay time dS, dr [s]: 0...50
• Electrical version: PNP/NPN
• Total number of exits: 2
• Weight [g]: 275,000
• Notes on accuracy/deviation: Switching point accuracy, characteristic curve deviation below DNVGL: < ± 1%
• Hysteresis deviation: < ± 0.1; (Turn down 1:1)
• In steps of - Factory setting / CMPT = 2 [bar]: 0.2
• In steps of - Factory setting / CMPT = 2 [psi]: 2
• In steps of - Status_B High Resolution / CMPT = 3 [bar]: 0.1
• In steps of - Status_B High Resolution / CMPT = 3 [psi]: 1
• IO-Link functions (acyclic) - Factory setting / CMPT = 2: Application-specific marking
• IO-Link functions (acyclic) - Status_B High Resolution / CMPT = 3: Application-specific marking
• IO-Link resolution pressure - Factory setting / CMPT = 2 [bar]: 0.1
• IO-Link resolution pressure - Status_B High Resolution / CMPT = 3 [bar]: 0.05
• Communication interface: IO-Link
• Short-circuit protection: yes
• Storage temperature [°C]: -40...100
• Long-term stability: < ± 0.05; (Turndown 1:1; per 6 months)
• Maximum rise time of analog output [ms]: 3
• Max. load [Ω]: 500
• Maximum voltage drop at DC switching output [V]: 2
• Media: Liquid media
• Medium temperature [°C]: -25...80
• Measuring range [bar]: 0...100
• Measuring range [psi]: 0...1450
• Minimum distance between SP and rP - Factory setting / CMPT = 2 [bar]: 0.6
• Minimum distance between SP and rP - Factory setting / CMPT = 2 [psi]: 6
• Minimum distance between SP and rP - Status_B High Resolution / CMPT = 3 [bar]: 0.5
• Minimum distance between SP and rP - Status_B High Resolution / CMPT = 3 [psi]: 6
• Minimum burst pressure [bar]: 650
• Minimum burst pressure [psi]: 9400
• Minimum printing cycles: 100 million
• Min. insulation resistance [MΩ]: 100; (500V DC)
• Minimum load resistance [Ω]: 2000
• Min. process cycle time - Factory setting / CMPT = 2 [ms]: 2.3
• Minimum process cycle time - Status_B High Resolution / CMPT = 3 [ms]: 3
• MTTF: 138
• Parameterization options: Hysteresis / Window; Normally closed / Normally open; Switching/Reset delay; Damping; Display unit; Current/Voltage output
• Profile - Factory setting / CMPT = 2: Smart Sensor: Process Data Variable; Device identification, device diagnosis
• Profile - Status_B High Resolution / CMPT = 3: Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
• Process connection: Threaded connection G 1/4 internal thread (DIN EN ISO 1179-2)
• Reset point rP - Factory setting / CMPT = 2 [bar]: 0.2...99.6
• Reset point rP - Factory setting / CMPT = 2 [psi]: 4...1444
• Reset point rP - Status_B High Resolution / CMPT = 3 [bar]: 0.2...99.6
• Reset point rP - Status_B High Resolution / CMPT = 3 [psi]: 3...1444
• Switching frequency DC [Hz]: < 500
• Switching point SP - Factory setting / CMPT = 2 [bar]: 0.6...100
• Switching point SP - Factory setting / CMPT = 2 [psi]: 10...1450
• Switching point SP - Status_B High Resolution / CMPT = 3 [bar]: 0.6...100
• Switching point SP - Status_B High Resolution / CMPT = 3 [psi]: 9...1450
• Protection class: IP 65; IP 67
• Protection class: III
• SIO mode: yes
• Connector: Pin layout: 0001 - Connector: 1 x M12; Coding: A; Contacts: gold-plated
• Current consumption [mA]: < 35
• Temperature coefficient at zero point: < ± 0.2; (-0...80 °C)
• Temperature coefficient range: < ± 0.2; (-0...80 °C)
• Overload resistant: yes
• Vacuum resistance [mbar]: -1000
• Reverse polarity protection: yes
• Watchdog integrated: yes
• Materials in contact with the medium: 1.4404 (stainless steel / 316L); Al2O3 (ceramic); FKM

type

PN2092

Connection

M12

Exits

PNP

NPN

Output signal (min.)

4mA

Output signal (max.)

20mA

interfaces

IO-Link

Measuring range (pressure) (min.)

0 MPa

Measuring range (pressure) (max.)

10MPa

Measuring range (pressure)

0 MPa to 10 MPa

Minimum operating voltage

18V/DC

Maximum operating voltage.

30V/DC

Operating voltage range

18 - 30 V/DC

Contact type

1 opener

1 closer

Analog

Hose connection

G1/4 IG

Minimum temperature

-25°C

Max. temperature

80°C

RoHS compliant

Yes

Contents

1 pc.

Product type

Pressure sensor
