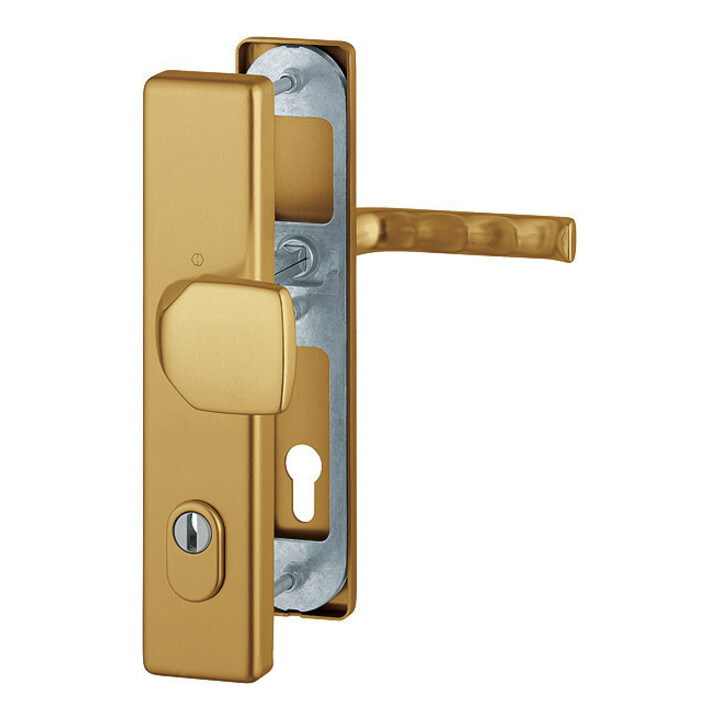

B-grade Hoppe protective fitting set for end doors F4 92mm 67 72mm cylinder cover
B-grade Hoppe protective fitting set for end doors F4 92mm 67 72mm cylinder cover
second-circle
Out of stock
Couldn't load pickup availability
Right of withdrawal , Lieber Deem Billiger Shop (Shoes Shop) shipping and returns , Matterhorn Moda textiles shipping and returns , Jens Gallay jewelry shipping and returns,
contact
contact
Technical data
| surface | F4 / bronze-colored |
| execution | Change set |
| material | aluminum |
| Direction of attack | DIN left/right |
| Resistance class | ES 1 |
| Cylinder cover | with ZA |
| standard | DIN 18257 |
| Perforation | PZ |
| square | 10 mm |
| Model | London 61G/2222ZA/2210/113 |
| for door thickness | 67-72 mm |
| distance | 92 mm |
| brand |
HOPPE |
Product description
For entrance doors with ZA · tested according to DIN 18257 · steel substructure in the outer and inner escutcheons · with return spring assembly · lever handle sets with cranked knob · fixed (reversible) · cylinder cover: hardened steel, for cylinder lengths of 10-18 mm · HOPPE FDW profile pin connection · high-strength, concealed screw fixing · edge height 15 mm · PZ bore · including M6 fixing material · resistance class ES 1 ·

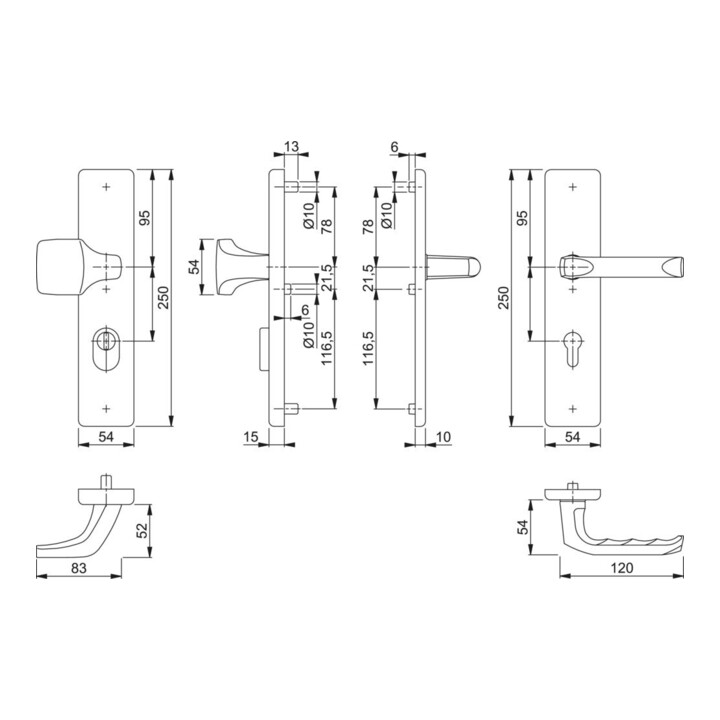

Further technical specifications : Width: 54 mm · Length: 250 mm · Cover: with cylinder cover · Shield thickness: 15 mm · Color no.: F4
EAN/GTIN: 4012789700916
