B-grade Hensel 2000013 Empty plastic enclosure for distribution cabinet. See text/photo.

Product description

Description

Enclosures for constructing power switchgear assemblies up to 630 A or as individual enclosures. Made of high-quality, double-insulated polycarbonate. Wall feedthroughs with large openings for electrical connection between enclosures. Cable entry on all enclosure walls via metric knockouts or mounting flanges. Enclosures for wall mounting are also available with external mounting lugs or mounting rails. Empty enclosures with opaque lids. Installation dimensions: W 575 x H 575 x D 150 mm for mounting devices on a mounting plate or DIN rail. Maximum installation depth: 146 mm with a mounting plate, 135 mm with a DIN rail. Lid closures require a tool.

Details

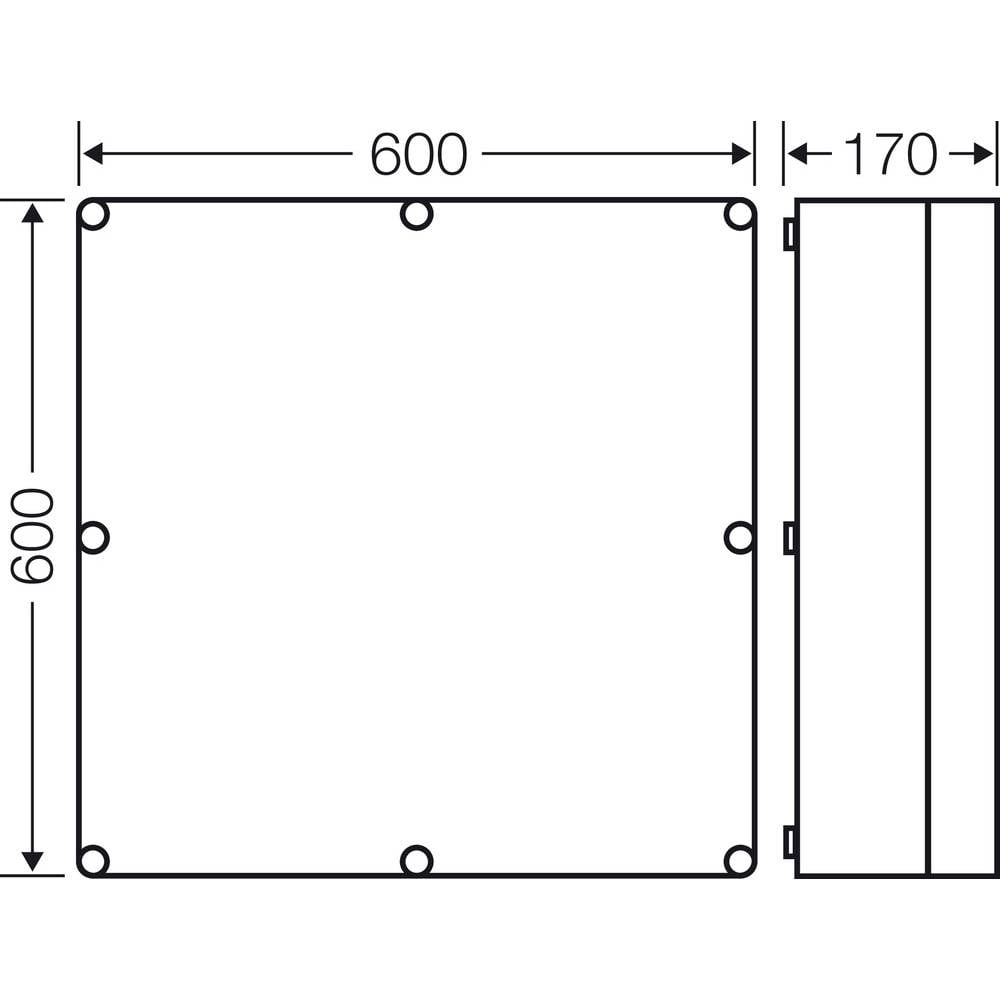

• Dimensions: 600.00 x 600.00 x 170.00 mm
• Contents: 1
• Depth: 170.00 mm
• Height: 600.00 mm
• Width: 600.00 mm
• Protection rating: IP65
• Material: Plastic
• Protection class: II
• Product type: Empty enclosure
