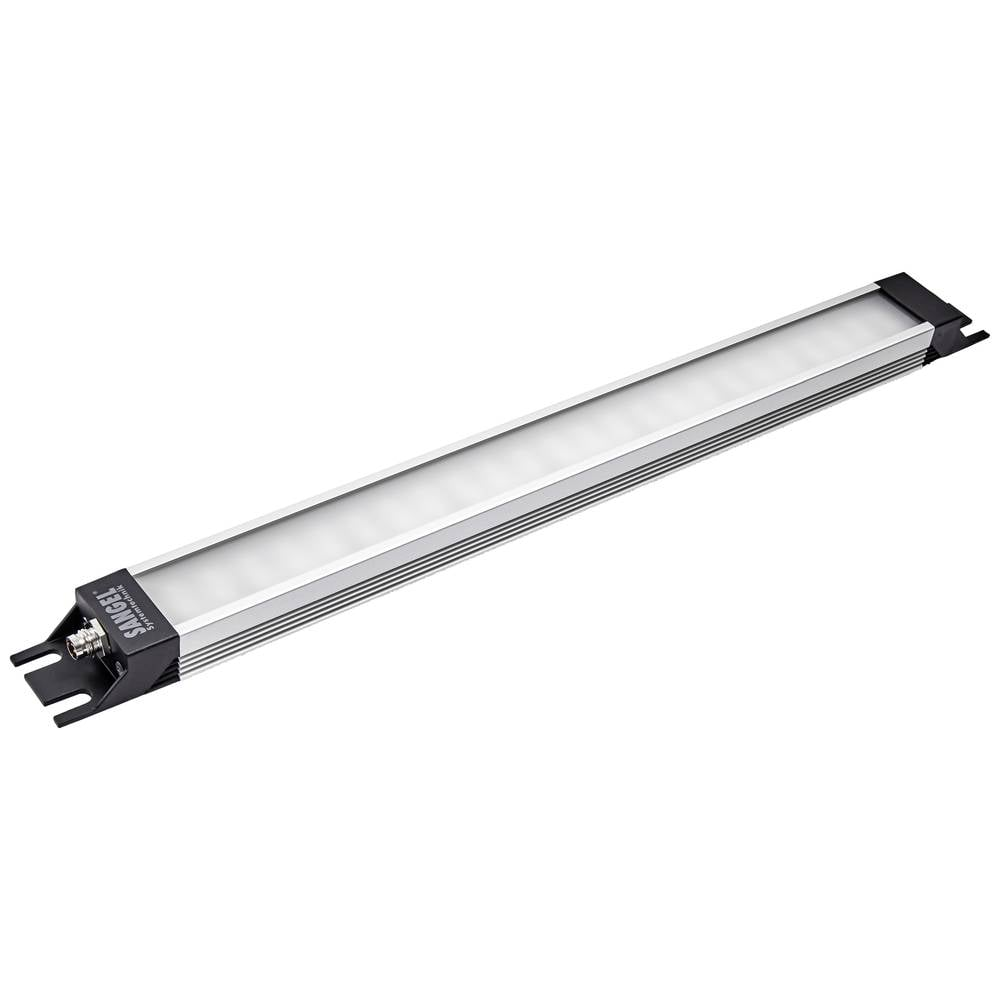

B-grade Helukabel machine LED light work light SL 280 S Pmm Ad M8 57 6.8 W 100°

• Lamp lifespan 60,000 h; UKCA: Yes; UL: Yes; Surface temperature of luminaire: Class D; Dimmable: external PWM; Power consumption white: 6.8 W; Weight (g): 217.56; Illuminated length: 280 mm; Mounting hole spacing
• 343 mm; Number of poles: 4; Coding: A-coded; Loop-through: No; Mounting: Fixed; Housing color: Anodized natural; Color spectrum: Standard; Cover material: PMMA; Cover design: Diffuse; Connection option: Flange, integrated connector; Color rendering index (CRI): 80; Maximum illuminance: 307 lux

type

SL 280 S-PMMAd-M8-57

Maximum operating voltage.

24V/DC

Operating voltage range

24 V/DC (max)

Performance

6.8W

Color

White

Maximum color temperature.

5700K

Luminous flux (phi)

882lm

Beam angle

100°

Connection

M8 connector

material

aluminum

Protection class

IP40

Protection class

III

Minimum temperature

-20°C

Max. temperature

+45°C

length

355mm

Width

30mm

Height

17.5mm

Dimensions

(L x W x H) 355 x 30 x 17.5 mm

RoHS compliant

Yes

Energy efficiency class

n.rel

Product type

Machine LED light
