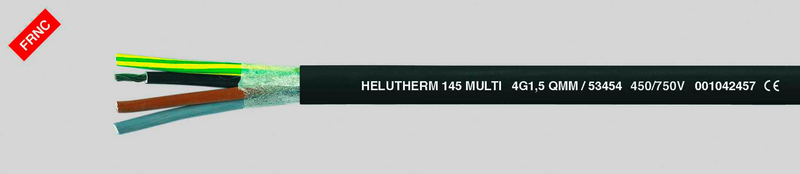

B-grade Helukabel Helutherm 145 Multi high-temperature cable 4 G 1.50 mm² black 100 m

Technical data

Bending radius (number of outer diameters for flexible use)

8

Bending radius (number of outer diameters for fixed installation)

4

Cable type

HELUTHERM 145 Multi

Contents

100 m

cross-section

4 G 1.50 mm²

Manufacturer's color

Black

Cross-section (per conductor)

1.50 mm²

Halogen-free

Yes

Insulation material

Polyolefin copolymer

Cable features

Heat resistant

Flexible

Halogen-free

notch-tough

UV-resistant

Ozone resistant

type

HELUTHERM 145 MULTI

Nominal voltage

450 V

Outer diameter

9.10 mm

Nominal voltage U0

750 V

Temperature range, permanently installed (max.)

+145 °C

Temperature range, permanently installed (min.)

-55 °C

Temperature range, moving (max.)

+120 °C

Temperature range, moving (min.)

-35 °C

Number of wires

4G

Packaged

Yes

Ladder assembly

Tinned copper strands, according to
DIN VDE 0295 cl.5, fine-stranded, BS 6360 cl.5, IEC 60228 cl.5

test voltage

3000 V

Wire identification code

DIN VDE 0293-308

fabric by the meter

No

Product type

High-temperature line
