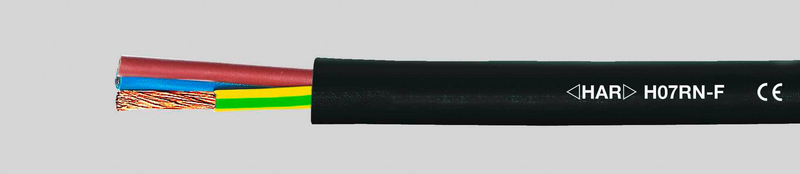

B-grade Helukabel H07 Rn F rubber hose cable, cable Sw 1x1.5 mm², flame-retardant cable
B-grade Helukabel H07 Rn F rubber hose cable, cable Sw 1x1.5 mm², flame-retardant cable
second-circle
Regular price
€26,66 EUR
Regular price
€104,00 EUR
Sale price
€26,66 EUR
Shipping calculated at checkout.
Quantity
Low stock: 1 left
Couldn't load pickup availability
Right of withdrawal , Lieber Deem Billiger Shop (Shoes Shop) shipping and returns , Matterhorn Moda textiles shipping and returns , Jens Gallay jewelry shipping and returns,
contact
contact
Description
Details
| Cable type | H07RN-F |
| Number of wires | 1 |
| Cross-section (per conductor) | 1.5 |
| cross-section | 1 x 1.5 mm² |
| Special features | Flame retardant |
| Manufacturer's color | Black |
| Outer diameter | 7.1 |
| Contents | 100 |
| Nominal voltage | 750 |
| Nominal voltage U0 | 450 |
| test voltage | 2500 |
| Bending radius (number of outer diameters for fixed installation) | 4 |
| Bending radius (number of outer diameters for flexible use) | 7.5 |
| Ladder assembly | Bare copper stranded wire, according to DIN VDE 0295 class 5, finely stranded, BS 6360 class 5, IEC 60228 class 5 |
| Packaged | Yes |
| fabric by the meter | No |
| Halogen-free | No |
| Shielded | No |
| Insulation material | rubber |
| Temperature range, moving (min.) | -25 |
| Temperature range, moving (max.) | +60 |
| Temperature range, permanently installed (min.) | -30 |
| Temperature range, permanently installed (max.) | +60 |
| Test mark | DIN VDE 0285-525-2-21 |
| Wire identification code | according to DIN VDE 0293-308 |
| type | H07 RN-F |
| Product type | Rubber hose line |
