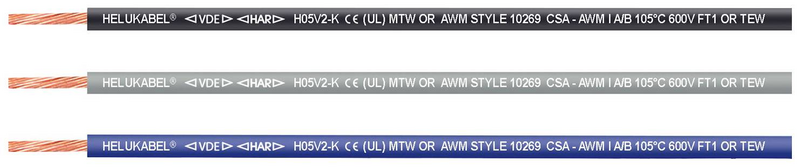

B-grade Helukabel single-core cable H05 V2 K 1 x 0.75 mm² black 100 m 11019335 100

Technical data

Nominal voltage

500V

Cable type

H05V2-K

Contents

100m

cross-section

1 x 0.75 mm²

Manufacturer's color

Black

Cross-section (per conductor)

0.75mm²

Insulation material

PVC

Special features

Flame retardant

type

11019335-100

Outer diameter

2.60mm

Nominal voltage U0

300V

Temperature range, permanently installed (max.)

+90°C

Temperature range, permanently installed (min.)

-40°C

Temperature range, moving (max.)

+90°C

Temperature range, moving (min.)

+5°C

Number of wires

1x

Stranded construction

Copper strands, bare, fine-wired according to DIN VDE 0295 cl.5, BS 6360 cl.5, IEC 60228 cl.5, according to UL-Std.758

test voltage

2000V

Standards

UL;CSA;HAR;MTW;AWM

Product type

single wire
