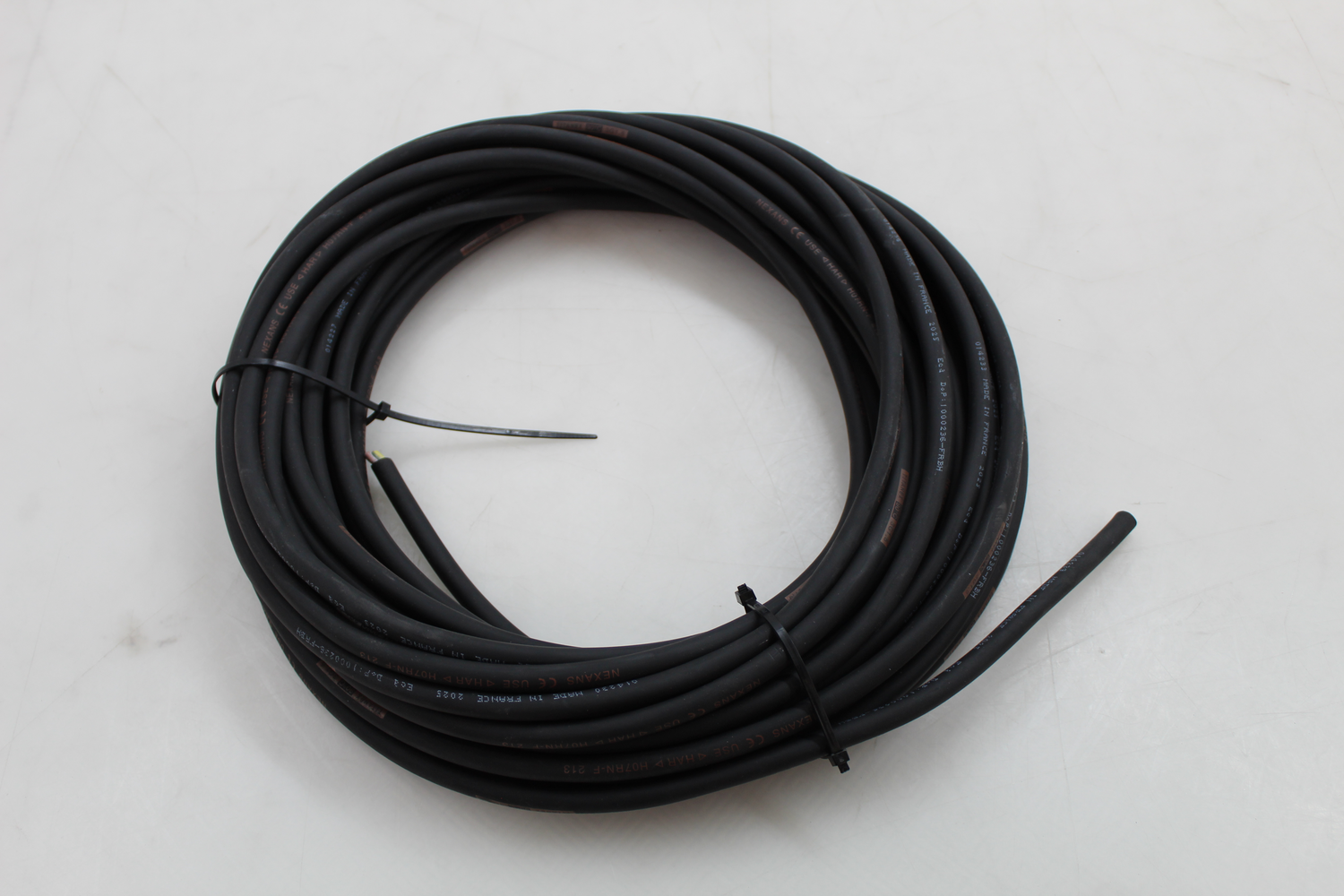

B-stock Helukabel 558445 hose line H07 Rn F 3 G 1.50 Mm² black 20 meters

B-stock Helukabel 558445 hose line H07 Rn F 3 G 1.50 Mm² black 20 meters

second-circle

€163,75 EUR
€2,52 EUR €163,75 EUR
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Right of withdrawal , Lieber Deem Billiger Shop (Shoes Shop) shipping and returns , Matterhorn Moda textiles shipping and returns , Jens Gallay jewelry shipping and returns,

Shipment

Payment methods

Privacy Policy

contact

/pages/contact

Technical data

  • Category: Hose assembly
  • Cable type: H07RN-F
  • Number of wires: 3G
  • Cross-section (per conductor): 1.50 mm²
  • Cross-section: 3 G 1.50 mm²
  • Special features: Oil-resistant - Ozone-resistant - Harmonised
  • Color: Black
  • Outer diameter: 11.90 mm
  • Contents: Fabric by the meter
  • Nominal voltage: 750 V
  • Nominal voltage U0: 450 V
  • Test voltage: 2.5 kV
  • Bending radius (number of outer diameters for fixed installation): 3
  • Bending radius (number of outer diameters for flexible use): 6
  • Conductor construction: Copper; finely stranded according to VDE 0295, Class 5/IEC 60228 CI.5; bare
  • Packaged: No
  • Sold by the meter: Yes
  • Halogen-free: No
  • Shielded: No
  • Manufacturer part number: 558445
  • Insulation material: Elastomer
  • RoHS compliant: Yes
  • Temperature range, moving (min.): -25 °C
  • Temperature range, moving (max.): +65 °C
  • Temperature range, permanently installed (min.): -60 °C
  • Temperature range, permanently installed (max.): +85 °C
  • Certification marks: Ozone resistant, oil resistant DIN VDE 0472 T804 Test type B IEC-60332-1
  • Type: H07RN-F
