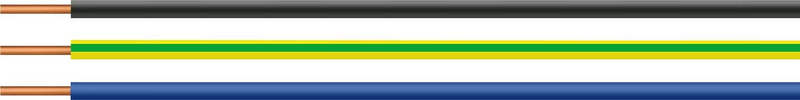

B-grade Helukabel 28779 100 single-core cable H05 VU cable 1 x 1 mm² blue 100 m

Technical data

Nominal voltage

500V

Cable type

H05V-U

Contents

100m

cross-section

1 x 1 mm²

Manufacturer's color

Blue

Cross-section (per conductor)

1mm²

Insulation material

PVC

Special features

Heat resistant

Flame retardant

type

28779-100

Outer diameter

2.70mm

Nominal voltage U0

300V

Temperature range, permanently installed (max.)

+80°C

Temperature range, permanently installed (min.)

-30°C

Number of wires

1x

Stranded construction

Bare copper conductor, single-wire, according to DIN VDE 0295 Class 1 / IEC 60228 Class 1

test voltage

2000V

Standards

EAC

Product type

single wire
