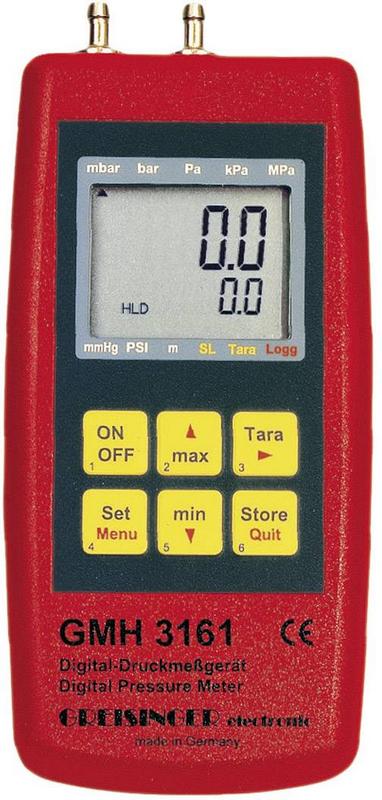

B-grade Greisinger GmbH 3161 07 Pressure Gauge Air Pressure Gauge See text

Scope of delivery

• battery
• User manual

Description

Handy and robust handheld pressure gauge with integrated relative pressure sensor and 4 mm pressure connection nozzle.

Details

• Measuring range: -10 to +350 mbar
• For over/under pressure and differential pressure
• Suitable for air or non-corrosive and non-ionizing gases.
• Power supply (details): 9V battery, power adapter socket
• Power consumption: approx. 0.6
• Pressure connection: 2 metal connection pins, made of nickel-plated brass, for connecting pressure hoses 6x1 mm (4 mm inner Ø)
• Air pressure: -10.0 to +350.0 mbar (± 350.0 mbar) rel.
• Display range: mbar, bar, Pa, kPa, MPa, PSI, mmHg, mH2O
• Resolution: 0.0001
• Sensor: Piezoresistive pressure sensor, internal
• Temperature: -25 to +50°C, 0 to +95% RH (non-condensing)
• Overpressure resistance: 1 bar rel.
• Protection rating: IP65
• Dimensions: (L x W x H) 142 x 71 x 26 mm
• Weight: 165
• Height: 26
• Length: 142
• Width: 71
• Measuring range: -0.01 - 0.350 bar
• Calibrated: Factory standard (without certificate)
• Measured variable: Air pressure
• Accuracy: 0.1
• Measuring range (max.): 0.350
• Measuring range (min.): -0.01
• Product type: Pressure gauge
