B-grade Greisinger GMH 3161-01 pressure gauge, air pressure gauge. SEE TEXT/PHOTO

Scope of delivery

• battery
• User manual

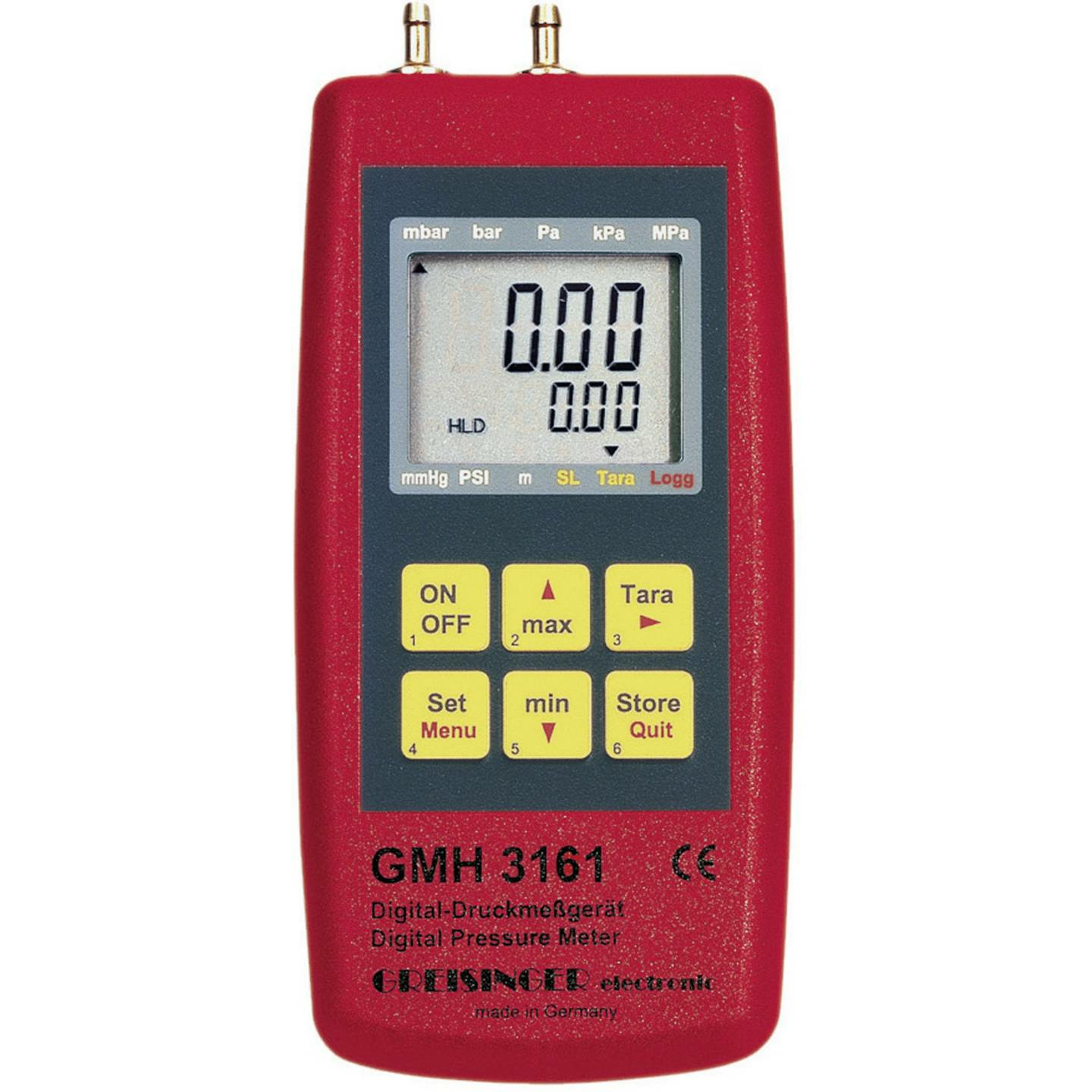

Greisinger handheld pressure gauge with integrated sensor GMH 3161-01

Highlights & Details

• Measuring range -1 to +25 mbar
• For over/under pressure and differential pressure
• Suitable for air or non-aggressive/non-corrosive gases.

Technical data

Power supply (details)

9V battery, power supply socket

electricity consumption

approximately 0.6 mA

Pressure connection

2 metal connection plugs, made of nickel-plated brass, for connecting pressure hoses 6 x 1 mm (4 mm inner Ø)

air pressure

-1.00 to +25.00 mbar (±25mbar) rel.

Display area

mbar, bar, Pa, kPa, MPa, PSI, mmHg, mH2O

resolution

0.00001 bar

sensor

Piezoresistive relative pressure sensor, internal

Temp.

-25 to +50°C, 0 to +95 % RH (non-condensing)

Overpressure resistance

100 mbar rel.

Protection class

IP65

Dimensions

(L x W x H) 142 x 71 x 26 mm

Weight

165 g

Height

26 mm

length

142 mm

Width

71 mm

Measuring range

-0.001 - 0.025 bar

Calibrated

Factory standard (without certificate)

Measured variable

air pressure

Non-aggressive gases

Corrosive gases

accuracy

0.3%

Measuring range (max.)

0.025 bar

Measuring range (min.)

-0.001 bar

Product type

Pressure gauge
