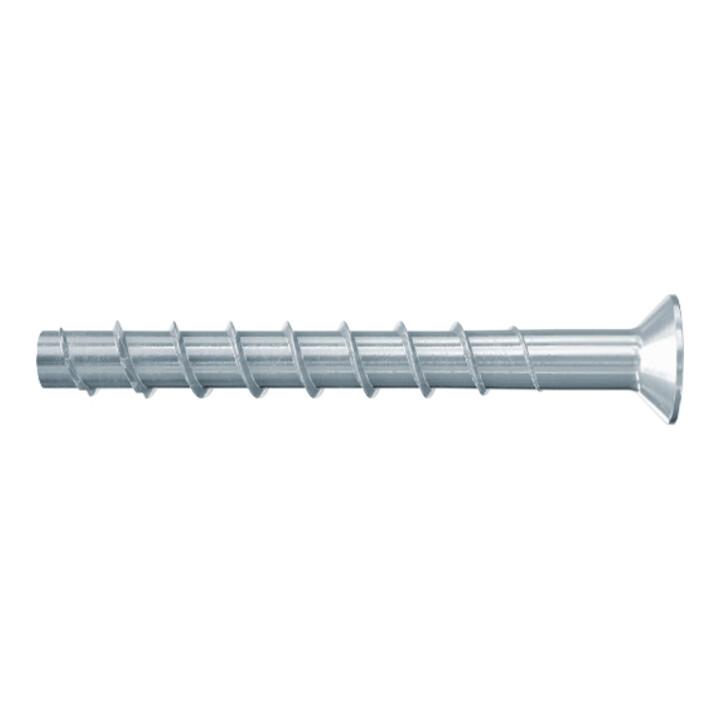

B-grade Fischer Ultra Cut Fbs II 10x140 SK concrete screw, through-bolt mounting

Scope of delivery

• 50 pieces

Characteristics:

• Maximum flexibility in load and component thickness thanks to up to three approved screw-in depths.
• The special sawtooth geometry allows for quick cutting into the concrete.
• For vertical installations (in ceilings and floors) and the use of hollow drill bits, borehole cleaning is not required. For drilling into floors, the hole must be drilled three times the drill diameter deeper.
• The expansion-free anchoring (undercut) ensures minimal edge and axial distances.
• The ETA assessment covers application in cracked concrete, as well as seismic performance categories C1 and C2.
• The approval-compliant adjustment allows the concrete screw to be loosened twice, the attachment to be shimmed and/or aligned.
• The national approval regulates multiple uses for temporary anchoring (e.g. formwork construction)

Application:

• The UltraCut FBS II is suitable for through-hole mounting
• When mounting in ceilings and floors, or when using hollow drill bits, borehole cleaning is not required. When drilling into floors, the hole must be drilled three times the drill diameter deeper.

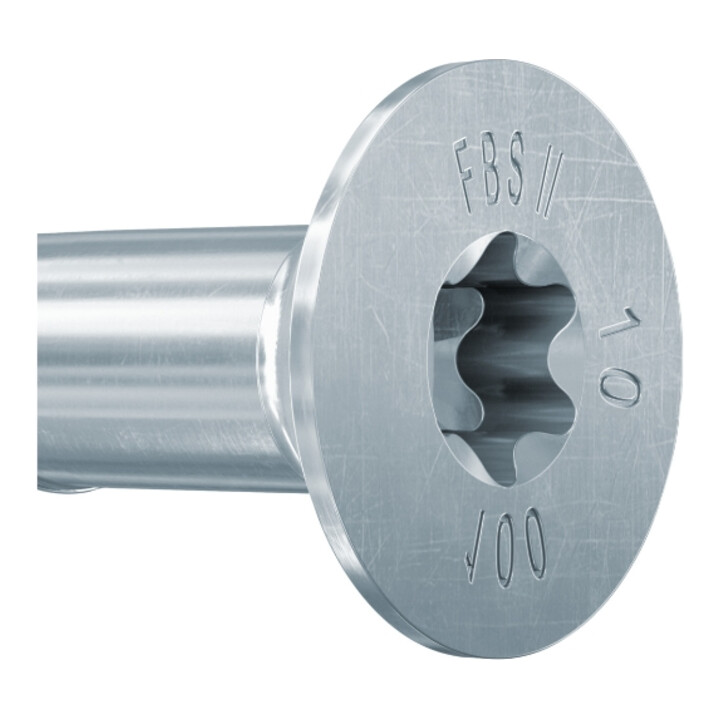

• For assembly, a tangential impact wrench with an impact wrench-compatible socket or a special TX bit is recommended.
• Correct installation of the screw is ensured when the screw head is flush against the attachment, so that the screw can no longer be screwed in further (visual setting check).
