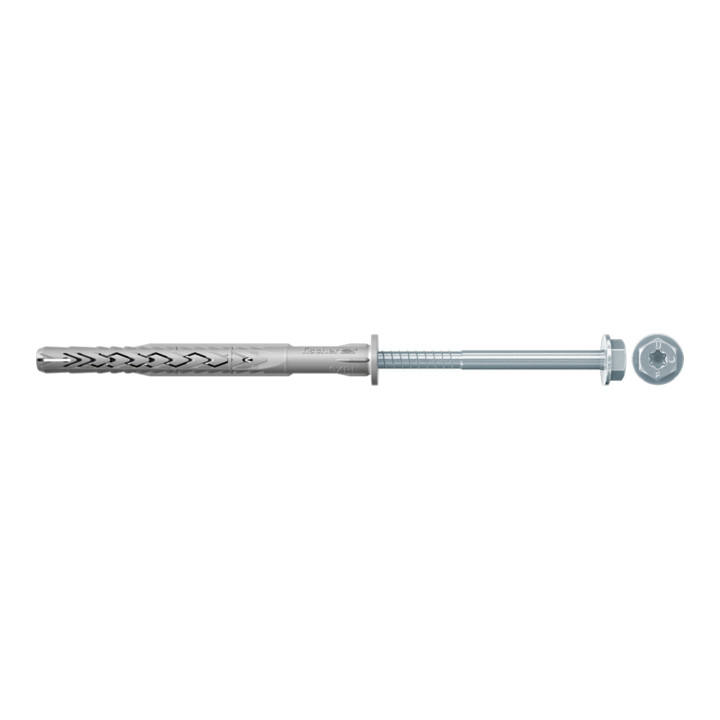

B-grade Fischer long shaft dowel fastener Sxrl hexagon screw 8x120 foot

Scope of delivery:

• 50 pieces

Characteristics:

• The long expansion element with multiple anchoring depths makes the SXRL a versatile product.
• Due to the special geometry of the dowel, the holding forces are distributed evenly in the borehole.
• When anchoring in hollow and solid building materials, the two expansion zones result in optimal holding values.
• When setting the anchor deeper, the longer ribs prevent the anchor from rotating during installation.

Application:

• The SXRL is suitable for through-hole mounting.
• In perforated brickwork, the two expansion zones ensure force transmission that is gentle on the substrate. The porous brick webs are not damaged by the second expansion zone and can therefore be used for force transmission.
• The two expansion zones combine in aerated concrete and solid building materials to form a long expansion element, providing a uniform, flat load distribution into the subsoil.
• Recommended for fastening metal structures.
• For fastening wooden structures, SXRL-T with countersunk screw is recommended.

EAN/GTIN: 4048962277012
