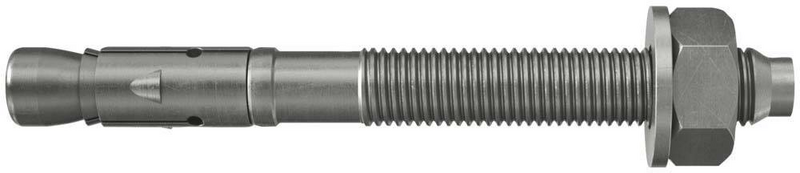

B-grade Fischer bolt anchors Faz II Plus 8/10 R Stainless steel 50 pieces dowels

Scope of delivery

• Bolt anchor FAZ II Plus 8/10 R (A4) | ​​M 8 x 38 VE=50
• Contents per pack: 50 pieces
• Minimum order quantity: 1 pack

Highlights & Details

• The new assessment (ETA) significantly increases the transverse load-bearing capacities.
• Quick and easy assembly
• The variable anchoring depths allow for millimeter-precise adjustment to the loads.

Technical data

Bolt anchor FAZ II Plus 8/10 R (A4) | ​​M 8 x 38 VE=50

• Contents per pack: 50 pieces
• Minimum order quantity: 1 pack
• Type: FAZ II Plus 8/10 R
• ETA: x
• ICC approval: -
• Seismic approval: C1
• Nominal drill bit diameter: 8(d0) mm
• Minimum drill hole depth for through-hole mounting: 68(h2) mm
• Dowel length: 75(l) mm
• Thread: M8 x 38
• Anchorage depth (standard): 45 mm
• Usable length (standard): 10(t fixed) mm
• Minimum anchorage depth: 35 2)(hef) mm
• Usable length (minimum): 20(t fixed) mm

diameter

8mm

Dimensions

(Ø x L) 8 mm x 75 mm

Contents

50 pcs.

length

75mm

Suitable for

concrete

Solid calcium silicate brick

material

Stainless steel V4A

Material properties

corrosion-resistant

Screw diameter

8mm

Product type

Anchor bolts
