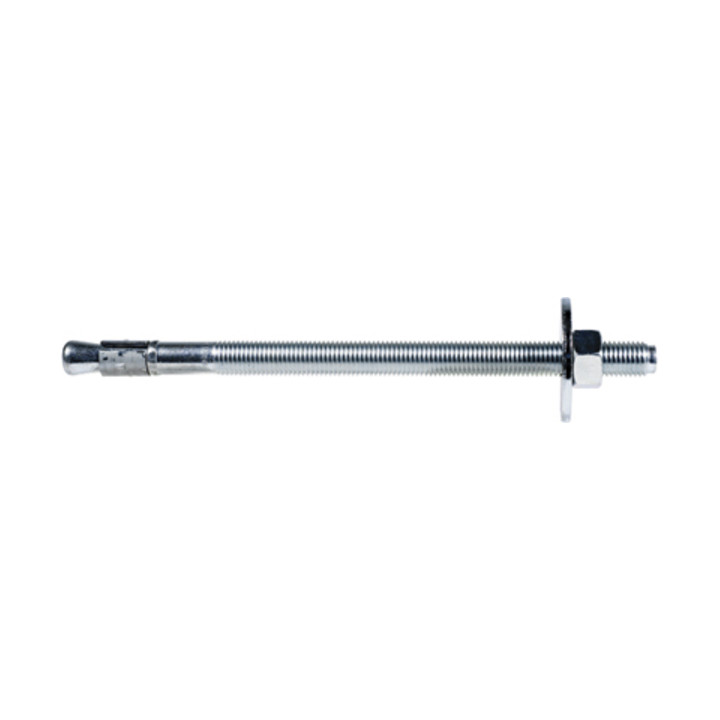

B-grade Fischer bolt anchor dowel anchor Fbn II 12/250 Gs large washer wood

Scope of delivery

• 10 pieces

Characteristics

• Large contact area thanks to a larger washer – ideal for wooden constructions

• Pre-assembled washer for faster assembly progress

• Standard anchoring depth for maximum load-bearing capacity → fewer fixing points and smaller anchor plates required

• Long thread for compensating component tolerances and standoff mounting → high flexibility

• Easy assembly thanks to fewer hammer blows and minimal tightening slippage.

• The drive-in pin protects the thread from damage → facilitates assembly & disassembly

• The head marking (“W”) allows for easy control of the anchoring.

• Suitable for pre- and through-hole mounting (also conditionally suitable for standoff mounting)

Application

1. Position the hexagonal nut optimally before assembly (the drive pin protrudes approximately 3 mm).

2. When the torque is applied, the conical bolt is pulled into the expansion clip and clamped against the borehole wall.

3. Anchorage can be checked via the head stamp.

Technical data

• EAN/GTIN: 4006209455869

• Nominal drill bit diameter: 12 mm

• Minimum drill hole depth for through-hole mounting: 335 mm

• Dowel length: 346 mm

• Thread: M12

• Thread length: 100 mm

• Wrench size: 19 mm

• Outer diameter of washer: 44 mm

• Washer thickness: 4 mm

• Max. thickness of attachment: 250 mm

• Maximum usable length hef,red: 265 mm

• Usable length hef,stand: 250 mm

• Anchorage depth: 65 mm

• Installation torque: 15 N·m

• Weight: 3,545 g

• Material: Steel, grade 45H, electro-galvanized

• Features: Corrosion-resistant

Approvals & Classifications

• ETA approval: Yes

• Approved for: Concrete C20/25 to C50/60 (uncracked)

• Also suitable for: concrete C12/15, natural stone with a dense structure

• Fire test: Yes (fire resistance class R 120)

• DOP – Declaration of Performance: Yes

• Quality seal: Yes

• Load values: Yes

• Mode of operation: Friction

• Factory Mutual Recognition: No

• EPD (Environmental Product Declaration): No

• Technical documentation: No
