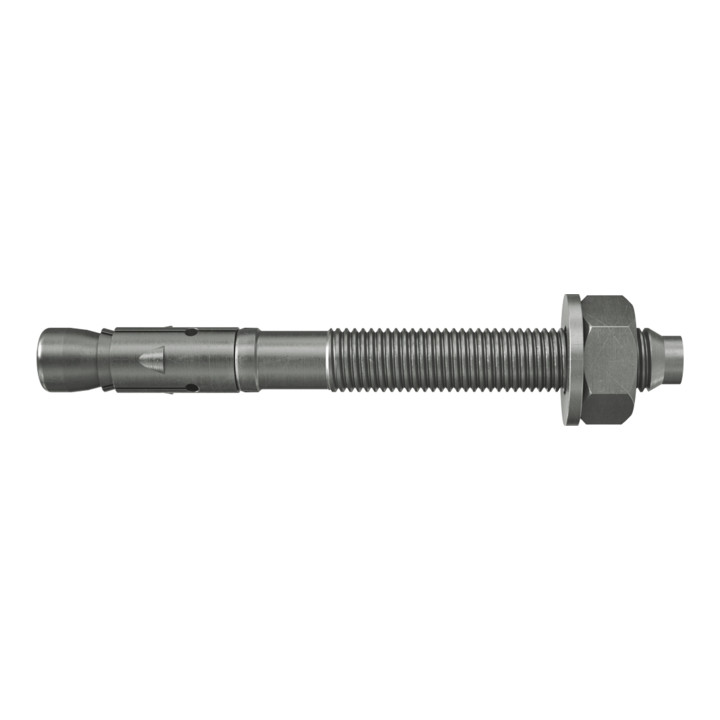

B-grade Fischer bolt anchor, anchor Faz II 12/50 A4 stainless steel, variable anchoring depth

Product description

Characteristics:

• According to the new assessment (ETA), the tensile load-bearing capacities increase significantly. This means fewer anchors are required.
• The variable anchoring depths for sizes M8 to M16 allow for the first time millimeter-precise adjustment to the loads.
• The version with a cap nut offers an aesthetically pleasing anchoring and, due to its round shape, also protects against injuries.
• The first M6 bolt anchor with an ETA rating Option 1, for safe and approved anchoring.

Application:

• The FAZ II is suitable for pre- and through-hole mounting and, thanks to its long thread, is also ideal for standoff mounting.
• When the nut is tightened, the conical bolt is pulled into the expansion clip and clamps it against the borehole wall.
• Once the specified torque is reached, the armature is set in accordance with the approval.
• For series production, we recommend using the FABS bolt anchor setting tool.

EAN/GTIN: 4048962006520
