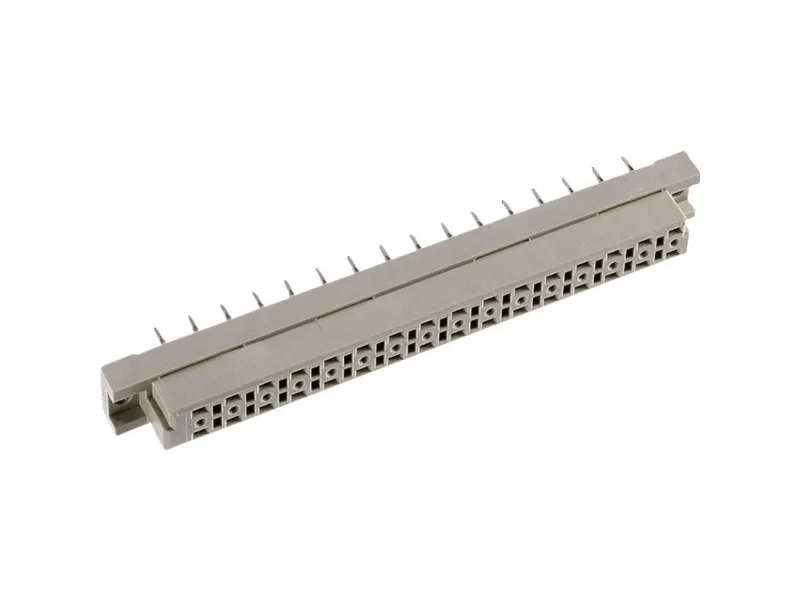

B-grade Ept 106 40066 Multi-socket Total number of poles 32 Number of rows 25 pieces

Technical data

Plug type

straight edge connectors

Plug orientation

Perpendicular (to the circuit board)

Number of lines

2

IT

5.08mm

Rated current

5.6A

Rated current - rounded value

5.6A

DIN standard

D

Pins per row

16

Connection

Press

Factory color

Light grey

Housing material

PBT, UL94V-0

Manufacturer part number

106-40066

Contents

1 piece

Contact material

copper alloy

Width

94.9mm

Height

11.5mm

length

10.5mm

Max. temperature

+125°C

Minimum temperature

-55°C

type

106-40066

Dark

(L x W x H) 10.5 x 94.9 x 11.5 mm

Total number of pins

32

configuration

(a+c)

Contact surface

Tinned

mating cycles

500

Nominal voltage

1500V

Number of pins

32

Resistance

<15mΩ

Test mark

DIN 41612

pen length

5.50mm

Product type

Edge connectors (sockets)
