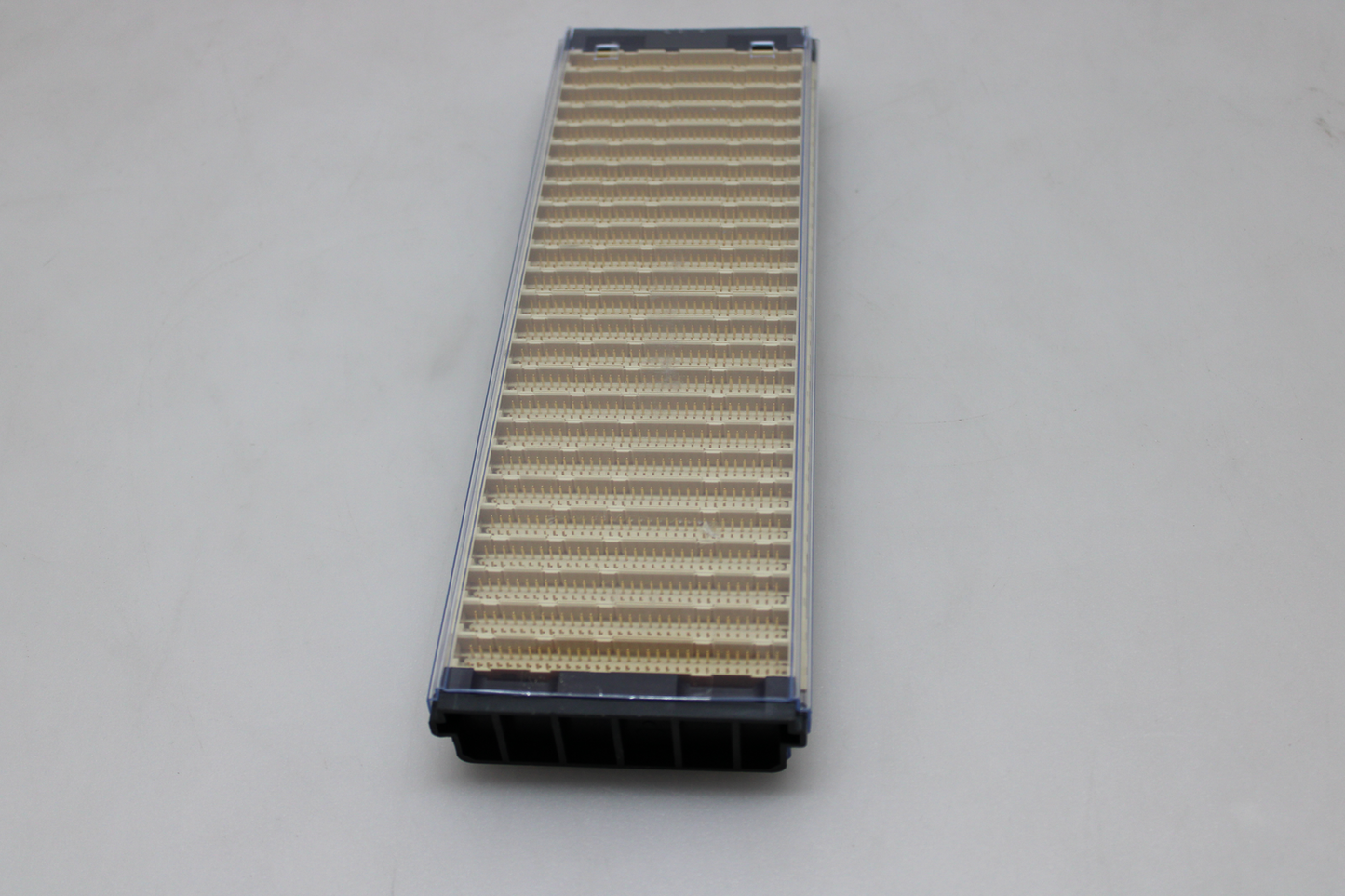

B-grade Ept 103 40034 Th knife strip, total number of poles 64, number of rows 25 pieces

Highlights & Details

• Number of rows: 3
• Contents: 1 piece

Technical data

Design

angled knife strip

Plug direction

Horizontal to the circuit board

Number of rows

3

RM

2.54mm

Rated current

1.5A

Rated current - rounded

1.5A

DIN standard

DIN 41612

DIN design

C

Number of poles per row

32

Manufacturer's color

Light grey

Housing material

PBT, UL 94V-0

Contents

1 pc.

Contact material

copper alloy

Width

94mm

Height

18mm

length

11.1mm

Max. temperature

+125°C

Minimum temperature

-55°C

type

103-40034TH

Dimensions

(L x W x H) 11.1 x 94 x 18 mm

Total number of poles

64

Occupancy

(a+c)

Contact surface

tinned

Plug-in cycles

500

Nominal voltage

1000V

Number of poles

64

Through-resistance

< 20mΩ

Product type

knife strip
