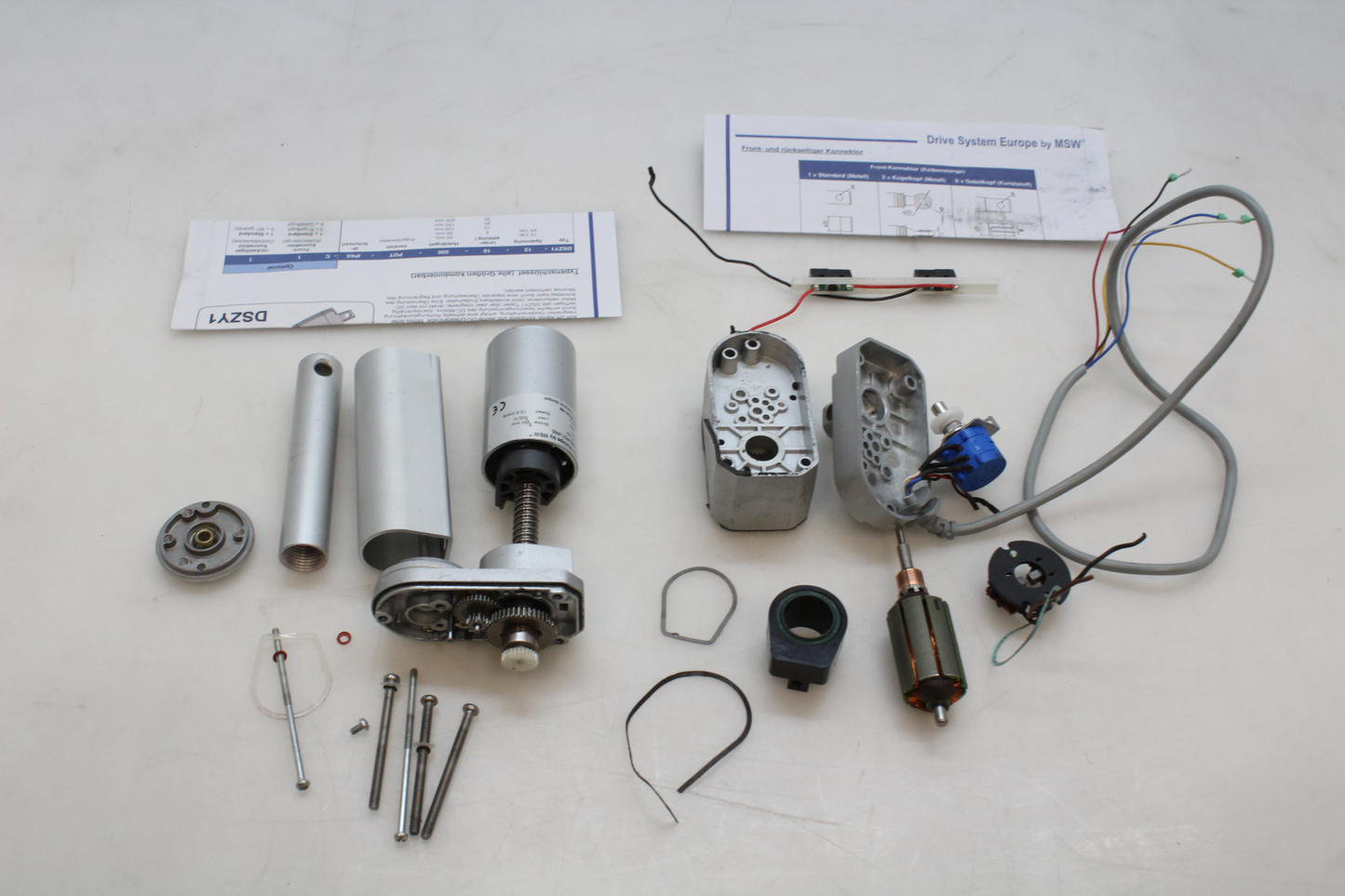

B-Ware Drive System Europe by MSW DSZY1-24-20-050-POT DEFECTIVE GOODS

Description: The DSZY1 electric cylinder with potentiometer is a small and lightweight DC linear actuator with a trapezoidal lead screw (ACME screw). It features an integrated diode circuit for quick and easy direction changes. Reversing the motor voltage allows for direction switching. The linear actuator comes standard with integrated, non-adjustable limit switches. This version of the electric cylinder is supplied with a potentiometer for position feedback.

Features:

High tensile and shear forces (up to 1000N) in a compact design
Protection class IP65
Integrated limit switches
High self-inhibition

Technical Attributes:

Rated current: 1.7
Rated current - rounded: 1.7
Type: DSZY1-24-20-050-POT-IP65
Protection rating: IP65 (Devices that cannot be used in all environmental conditions are classified into so-called IP protection ratings (IP = International Protection) and marked as follows.<br><br>The first digit indicates protection against contact/foreign objects, the second digit indicates protection against water. The third and fourth digits can be omitted. They represent additional protection against contact and supplementary features. If the first or second digit is not relevant for the marking, it is replaced by an X.<br><br>The most important protection ratings are:<br><br>IP44: Protection against solid objects larger than Ø 1 mm and protection against splashing water from all directions.<br>IP54: Protection against dust in harmful quantities and protection against splashing water from all directions.<br>IP67: Dust-tight and protection against temporary immersion.<br><br>Detailed information can be found in our product advice section under Home & Garden/Lighting.)
Special features: with built-in potentiometer
Nominal voltage: 24
Speed ​​(max.): 15
Stroke length: 50
Thrust: 500
Product type: Electric cylinder
