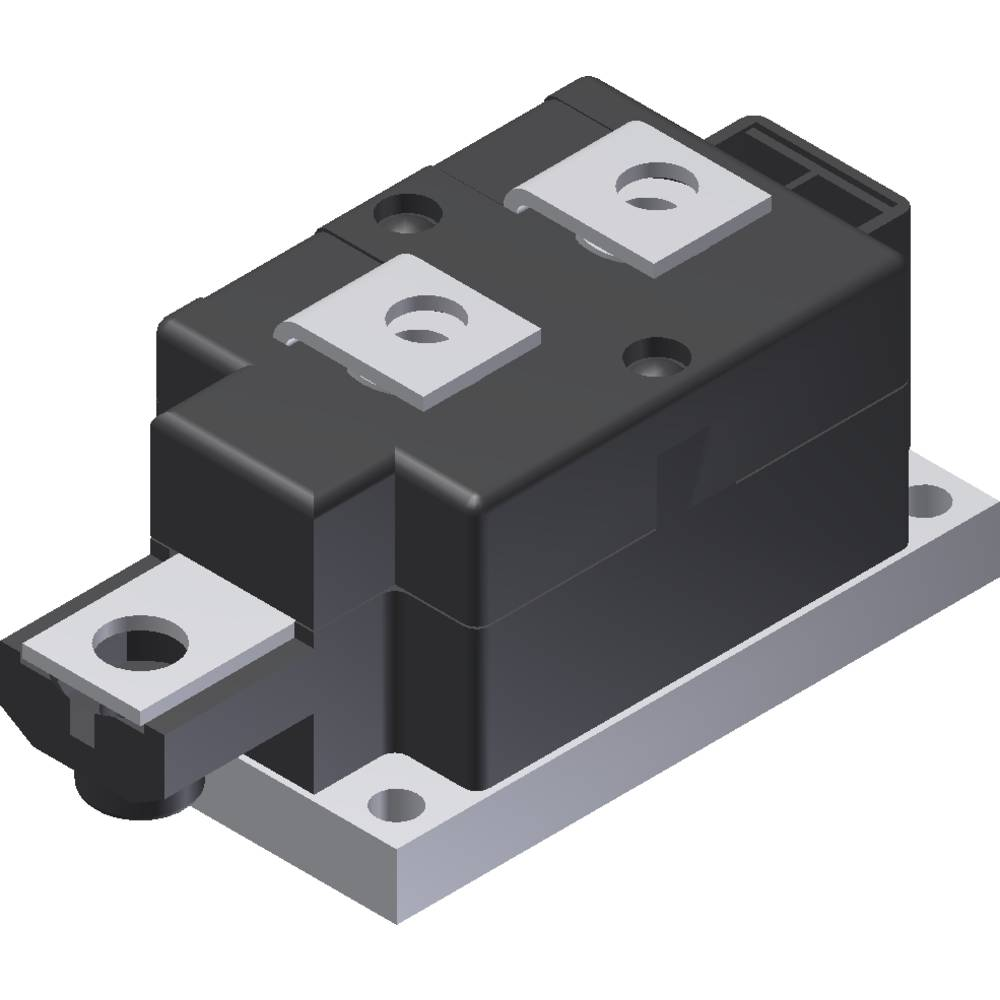

B-Ware Littelfuse Mdd175 34 N1 Y1 Cu 3400 V Diode

• Package Type: Y1-CU
• Maximum Repetitive Blocking Voltage (V): 3400 V
• Case temperature: 100 °C
• maximum virtual junction temperature: 150 °C
• Thermal resistance [junction-case] (K/W): 0.14 K/W
• Average Continuous Current Rating: 240 A
• slope resistance for power loss calculation: 1.27 mΩ
• Thermal Resistance caseheatsink KW: 0.04 K/W
• Threshold voltage for power loss calculation: 0.74 V
• Max Reverse Recovery Current: 8500 A

Verpackungsart

Bulk

Typ

MDD175-34N1

Gehäuse

Y1-CU

Hersteller

Littelfuse

Sperrspannung U(R)

3400V

Betriebstemperatur (max.)

150°C

Produkt-Art

Diode
